Removal and replacement procedures
Maintenance and Service Guide 4–25
Ä
CAUTION: Support the display assembly when removing the following screws. Failure to support the display assembly can
result in damage to the display assembly and other computer components.

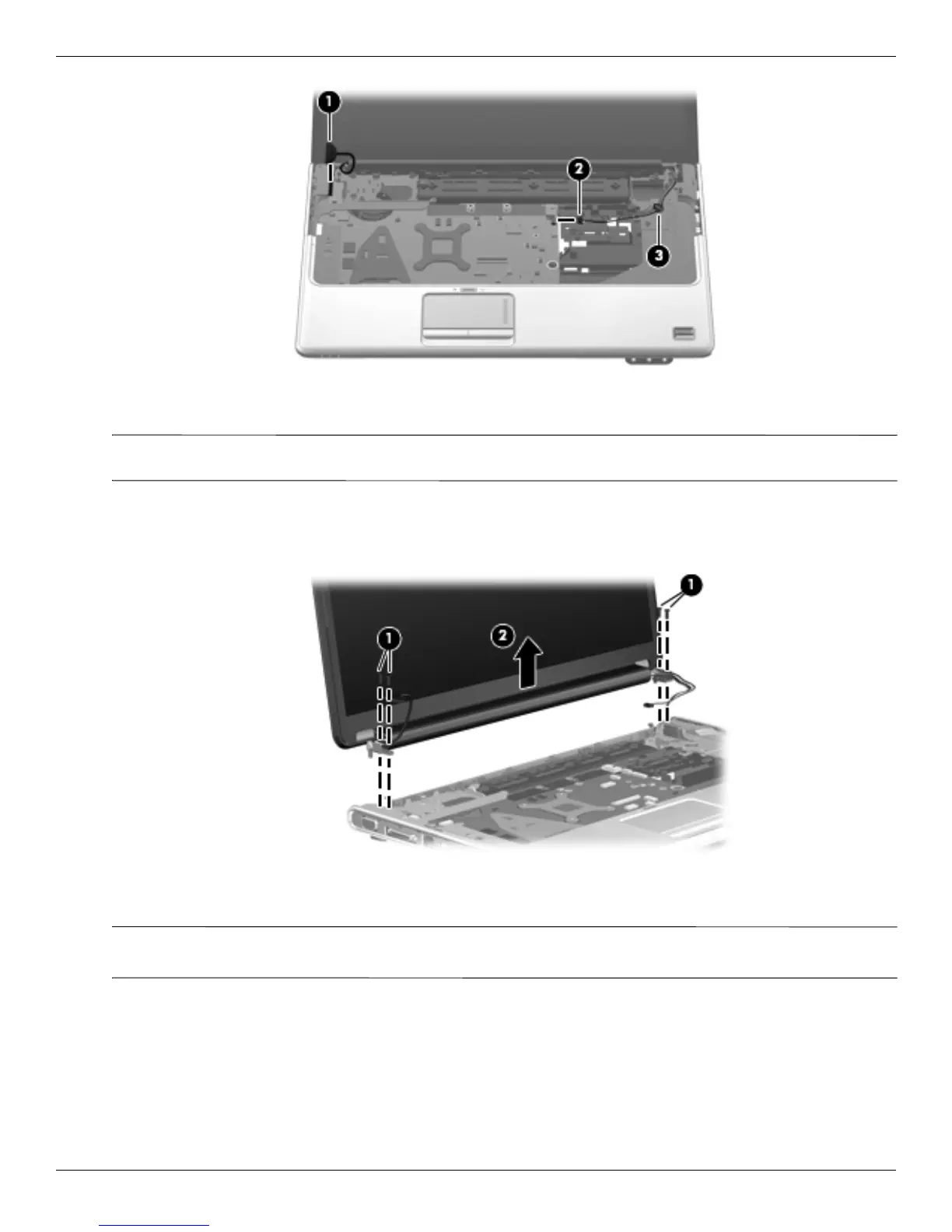

3. Remove the four Phillips PM2.5×6.5 screws 1 that secure the display assembly to the computer.
4. Lift the display assembly 2 straight up and remove it.
✎
See “Webcam/microphone module” on page 4-7 for webcam/microphone module replacement instructions for
computer models equipped with BrightView display assemblies.
5. Remove the two Phillips PM2.5×5.0 screws 1 that secure the display hinge to the display panel.
6. Remove the display hinge 2. The display hinge is available in the Display Hinge Kit, spare part number
574556-001.
