4–26 Maintenance and Service Guide
Removal and replacement procedures

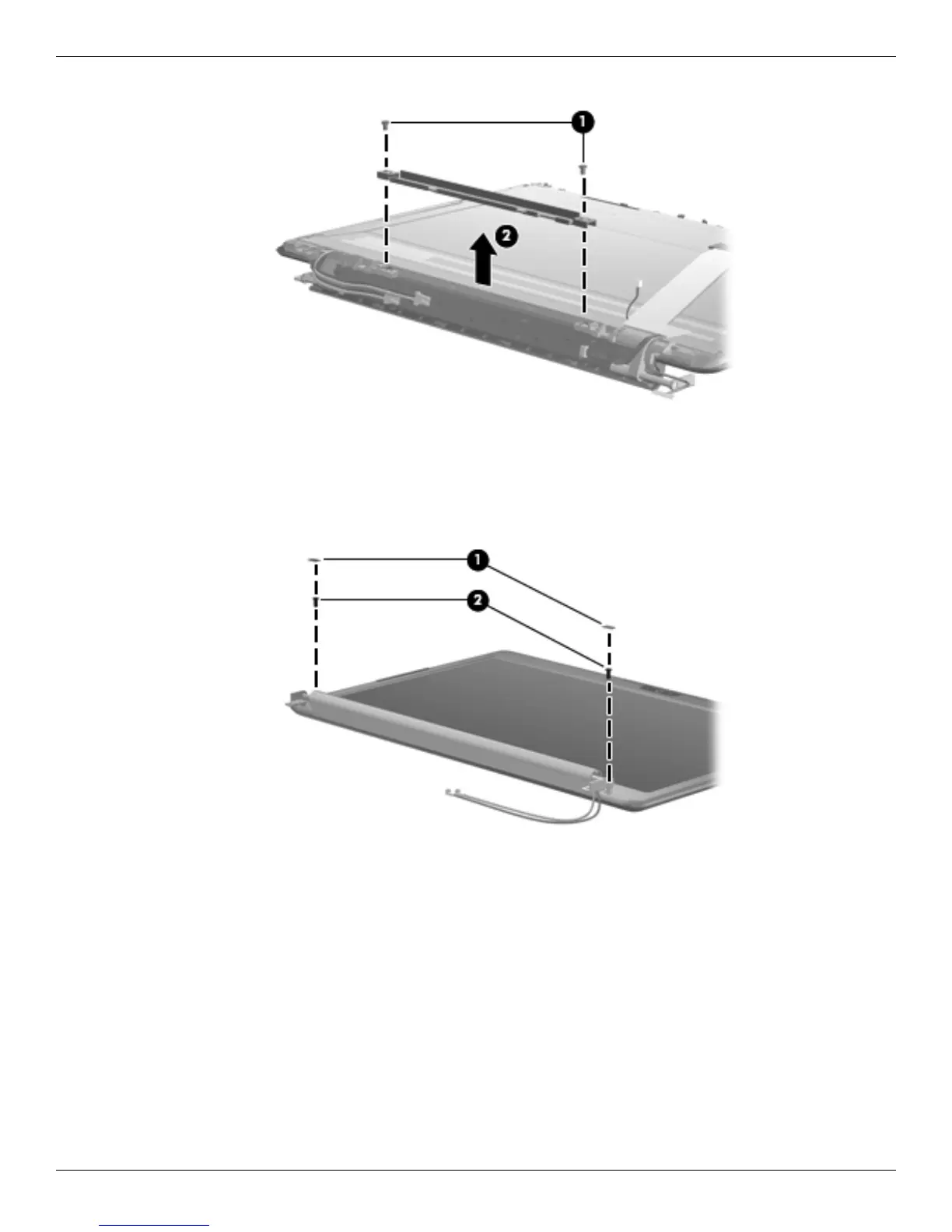

7. If it is necessary to replace the display bezel or any of the display assembly internal components, remove the
following screw covers and screws: Two rubber screw covers on the display bezel bottom edge 1. Two
Phillips PM2.5×6.5 screws 2. The display rubber screw covers are included in the Display Rubber Kit, spare
part number 512361-001.
8. Flex the inside edges of the top edge 1, the left and right sides 2, and the bottom edge 3 of the display bezel
until the bezel disengages from the display enclosure.
9. Remove the display bezel 4. The display bezel is available using spare part number 512364-001.
