Removal and replacement procedures
Maintenance and Service Guide 4–29

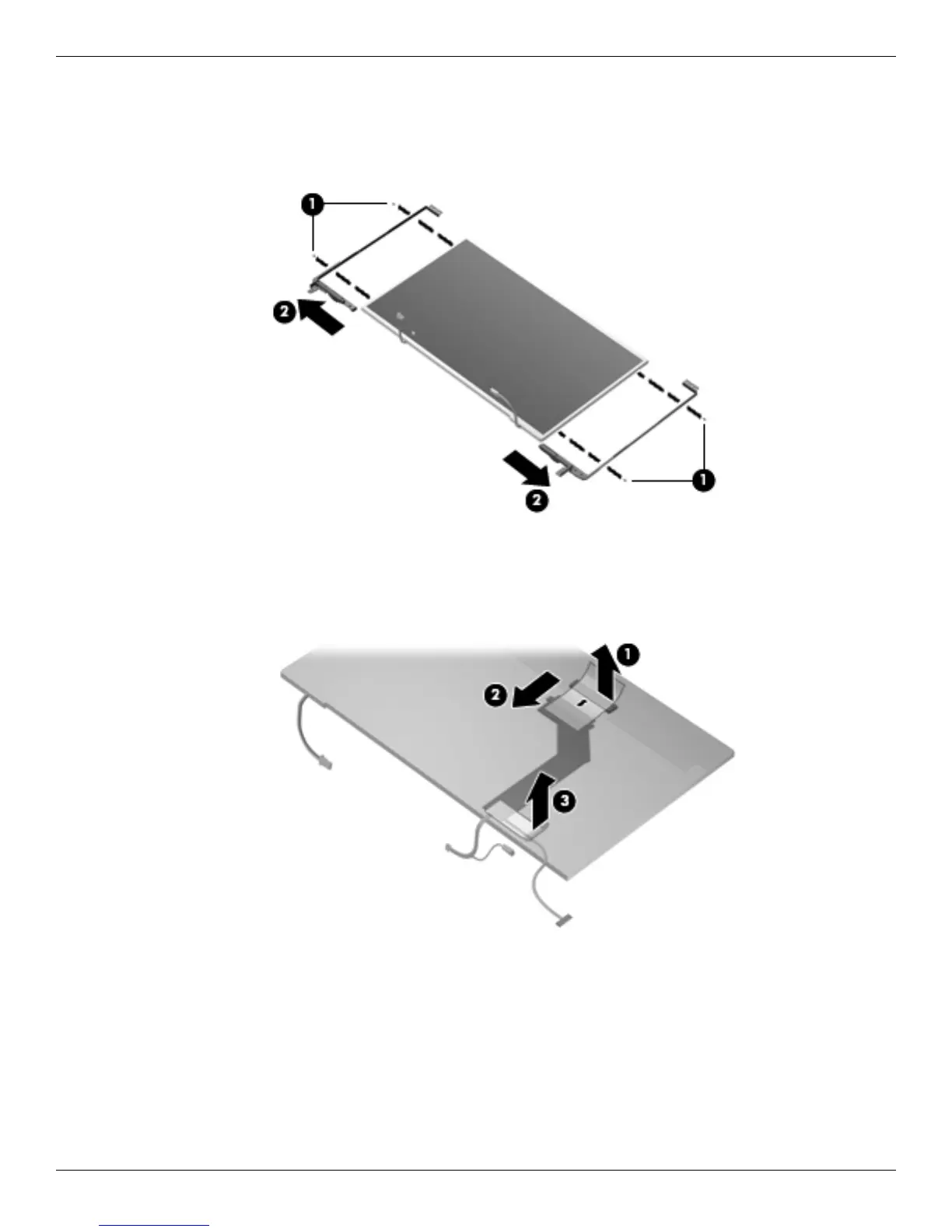

15. If it is necessary to replace the display hinges, remove the two Phillips PM2.0×3.0 screws 1 that secure each
display hinge to the display panel.
16. Remove the display hinges 2. The display hinges are available in the Display Hinge Kit, spare part number
574556-001. The display hinge screws are available in the Display Screw Kit, spare part number 512362-001.
I
17. If it is necessary to remove the display panel cable, remove the adhesive plastic strip 1 from the display panel
cable, and disconnect the display panel cable from the top of the display panel 2. Remove the tape 3 that
secures the cable to the display panel. The display panel cable is available using spare part number
574554-001.
Reverse this procedure to reassemble and install the display assembly.
