4–28 Maintenance and Service Guide
Removal and replacement procedures

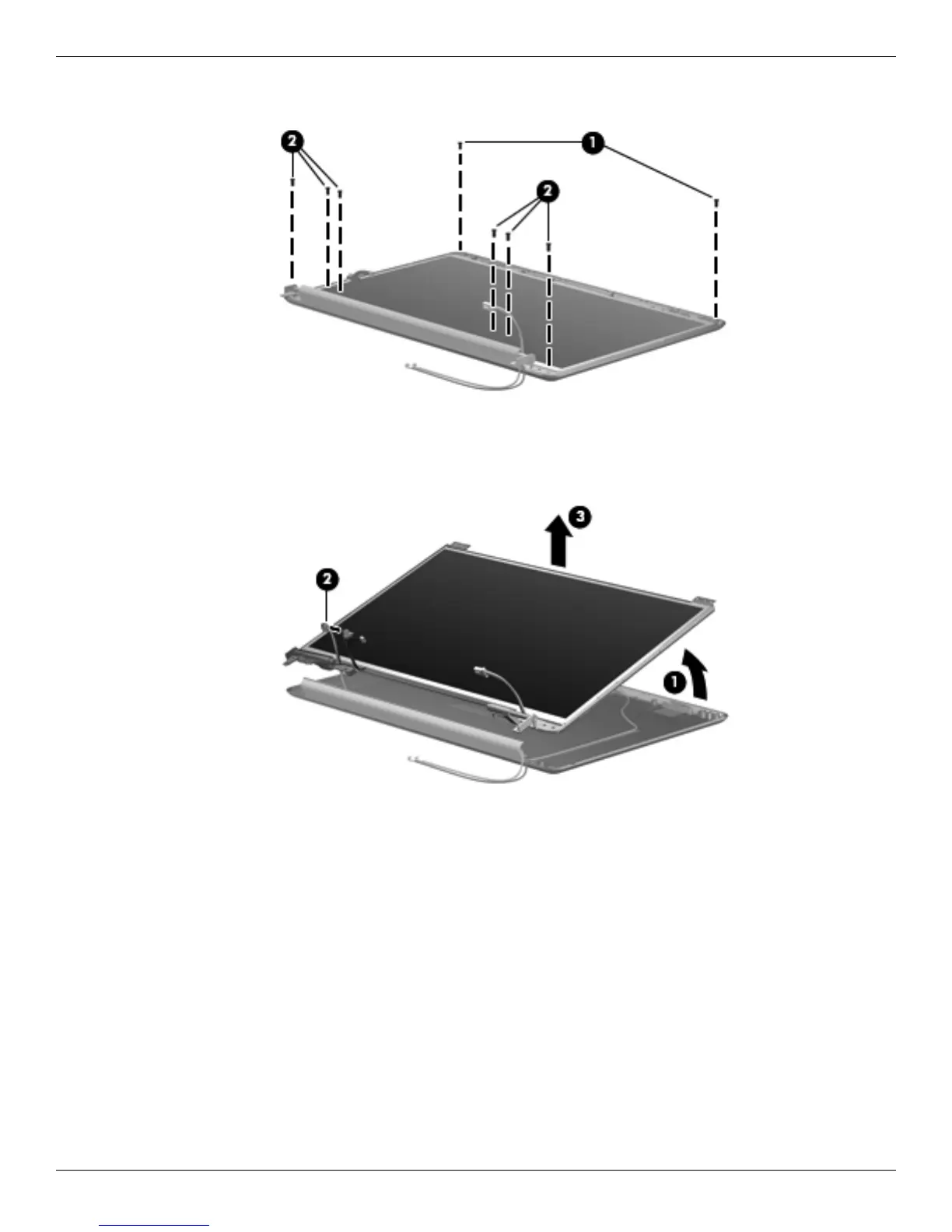

13. If it is necessary to replace the display panel, remove the two Phillips PM2.5×5.0 screws 1 from the top
corners and the six Phillips PM2.5×5.0 screws 2 from the display hinges.
14. Flex the bottom 1 of the display panel and release the display hinges. Disconnect the display LED cable 2
from the display panel cable. Remove the display panel 3. The display panel is available using spare part
number 570095-001.
