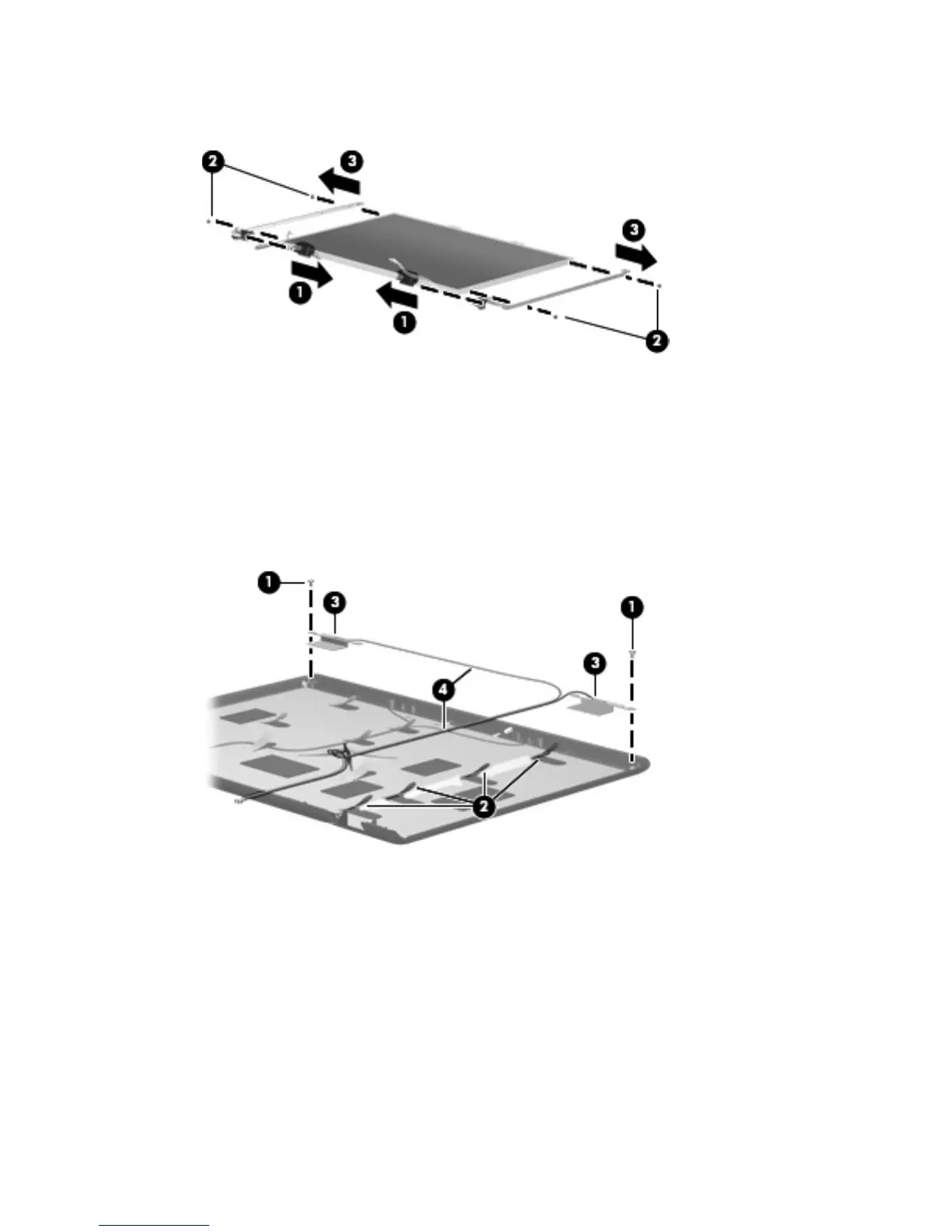

16. Remove the display hinges (3). The display hinges are available using spare part number

431395-001.

17. If it is necessary to replace the wireless antenna transceivers and cables, remove the Phillips

PM2.0×3.0 screw (1) that secures each transceiver to the display enclosure.

18. Remove the wireless antenna cables from the clips (2) built into the display enclosure.

19. Detach the wireless antenna transceivers (3) from the display enclosure and remove the transceivers

and cables (4). The wireless antenna transceivers and cables are available using the following spare

part numbers 449727-001 (for use only with computer models equipped with an 802.11a/b/g/n

WLAN module) and 431398-001 (for use only with computer models equipped with an 802.11a/

b/g or 802.11b/g WLAN module).

20. If it is necessary to replace the microphones and cables, release the retention tabs (1) built into the

display enclosure that secure the microphone cables to the display enclosure

21. Remove the microphone receivers (2) from the clips in the display enclosure.

Component replacement procedures 67
