d. Keyboard (see Keyboard on page 60)

e. Speaker assembly (see

Speaker assembly on page 58)

f. Display assembly (see

Display assembly on page 63)

g. Top cover (see

Top cover on page 69)

h. Audio board (see

Audio board on page 80)

i. USB/power connector board (see

USB/power connector board on page 76)

When replacing the system board, be sure that the following components are removed from the defective

system board and installed on the replacement system board:

●

Memory modules (see

Memory module on page 48)

●

RTC battery (see

RTC battery on page 50)

●

WLAN module (see

WLAN module on page 51)

●

Bluetooth module (see

Bluetooth module on page 73)

●

ExpressCard assembly (see

ExpressCard assembly on page 74)

●

Fan/heat sink assembly (see

Fan/heat sink assembly on page 81)

●

Processor (see

Processor on page 83)

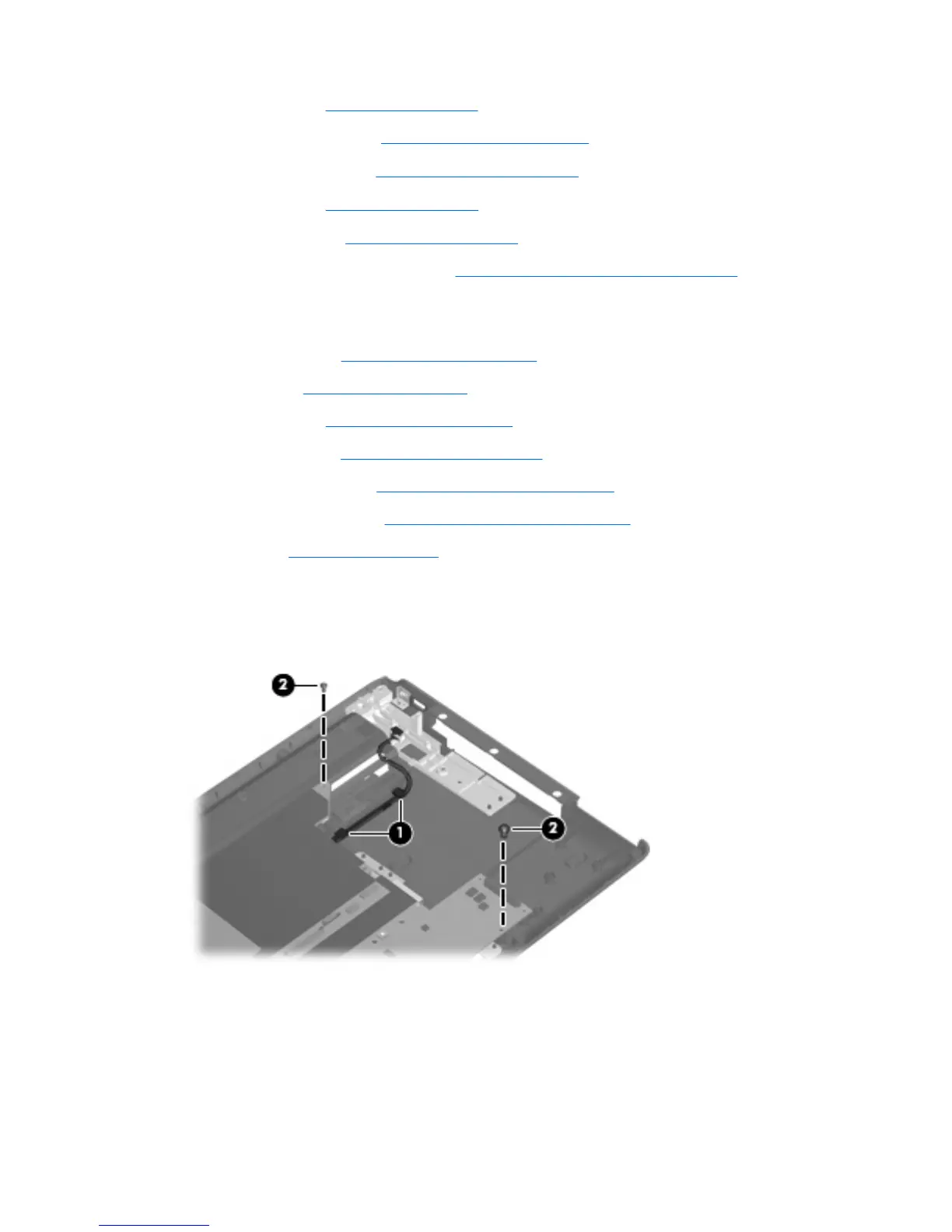

Remove the system board:

1. Remove the USB/power connector board cable (1) from the clips built into in the base enclosure.

2. Remove the two Phillips PM2.5×4.0 screws (2) that secure the system board to the base enclosure.

3. Use the optical drive connector (1) to lift the right side of the system board (2) until it rests at an

angle.

4. Disconnect the audio board cable (3) from the system board.

78 Chapter 4 Removal and replacement procedures
