4–12 Maintenance and Service Guide
Removal and replacement procedures

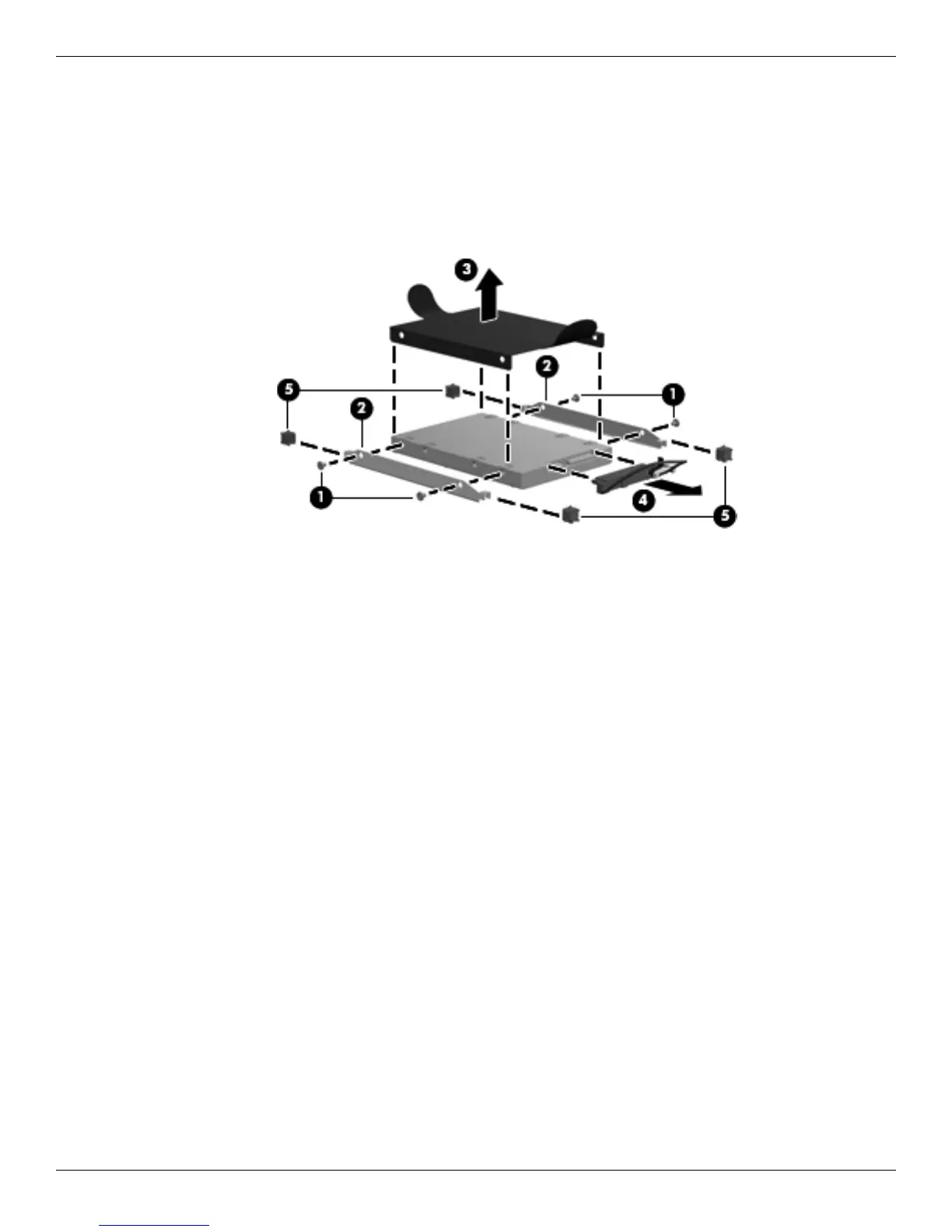

6. If it is necessary to replace the left and right brackets, Mylar sleeve, connector, and isolators:
a. Remove the two Phillips PM3.0×4.0 screws 1 from each side of the mass storage device.
b. Remove the left and right brackets 2.
c. Lift the Mylar sleeve 3 straight up to remove it from the mass storage device.
d. Remove the mass storage device connector 4.
e. Remove the four isolators 5.
Reverse this procedure to reassemble and install the mass storage devices.
