Removal and replacement procedures
Maintenance and Service Guide 4–25
Power button board
Before removing the power button board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-7).
5. Remove the switch cover (see “Switch cover” on page 4-21).
6. Remove the keyboard cover (see “Keyboard cover” on page 4-23).

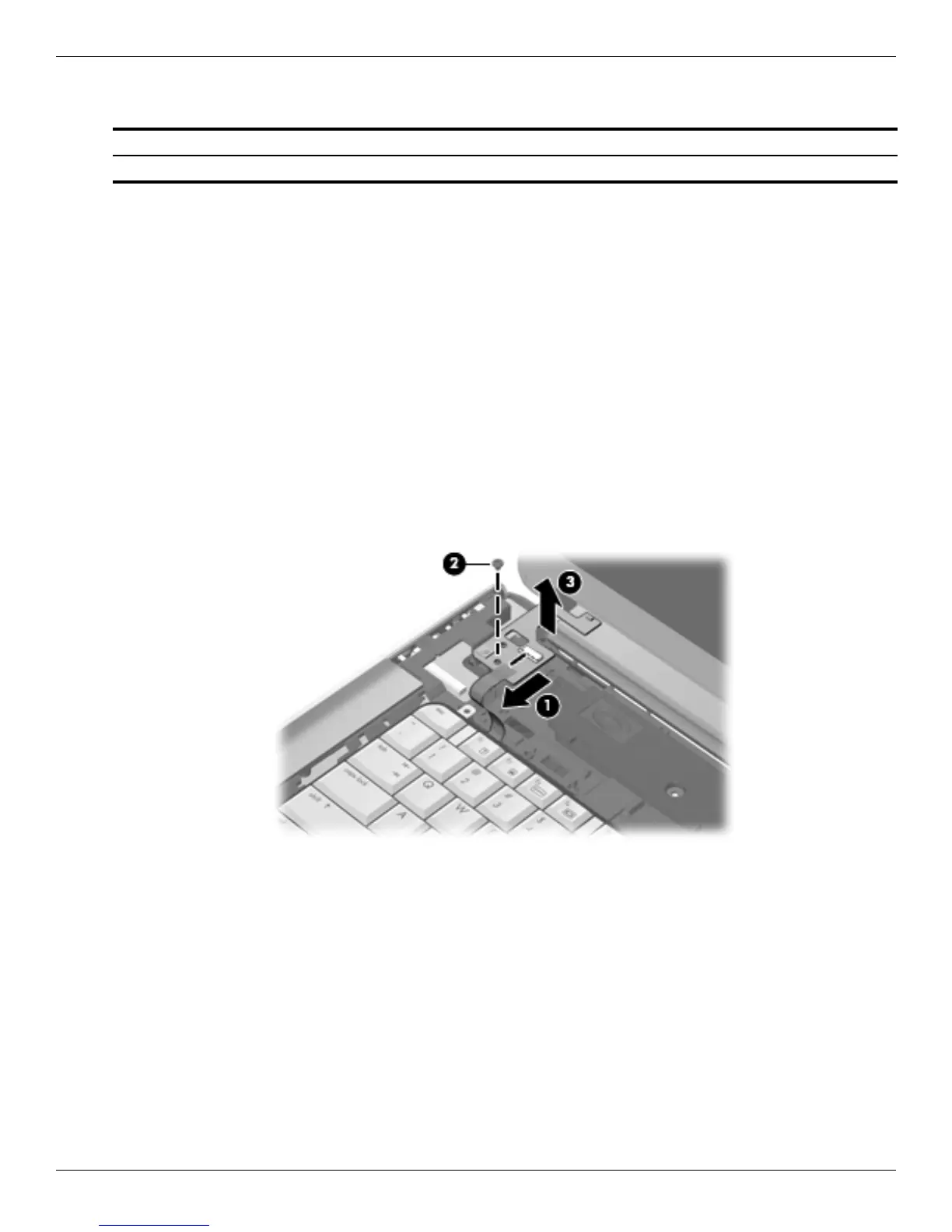

Remove the power button board:
1. Disconnect the power button board cable 1 from the LIF connector on the power button board.
2. Remove the Phillips PM2.0×4.0 screw 2 that secures the power button board to the top cover.
3. Remove the power button board 3.
Reverse this procedure to install the power button board.
Description Spare part number
Power button board (includes cable) 580987-001
