Removal and replacement procedures
Maintenance and Service Guide 4–31
Bluetooth module cable
Before removing the Bluetooth module cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-7).
5. Remove the following components:
a. Switch cover (see “Switch cover” on page 4-21)
b. Keyboard cover (see “Keyboard cover” on page 4-23)
c. Power button board (see “Power button board” on page 4-25)
d. Keyboard (see “Keyboard” on page 4-27)

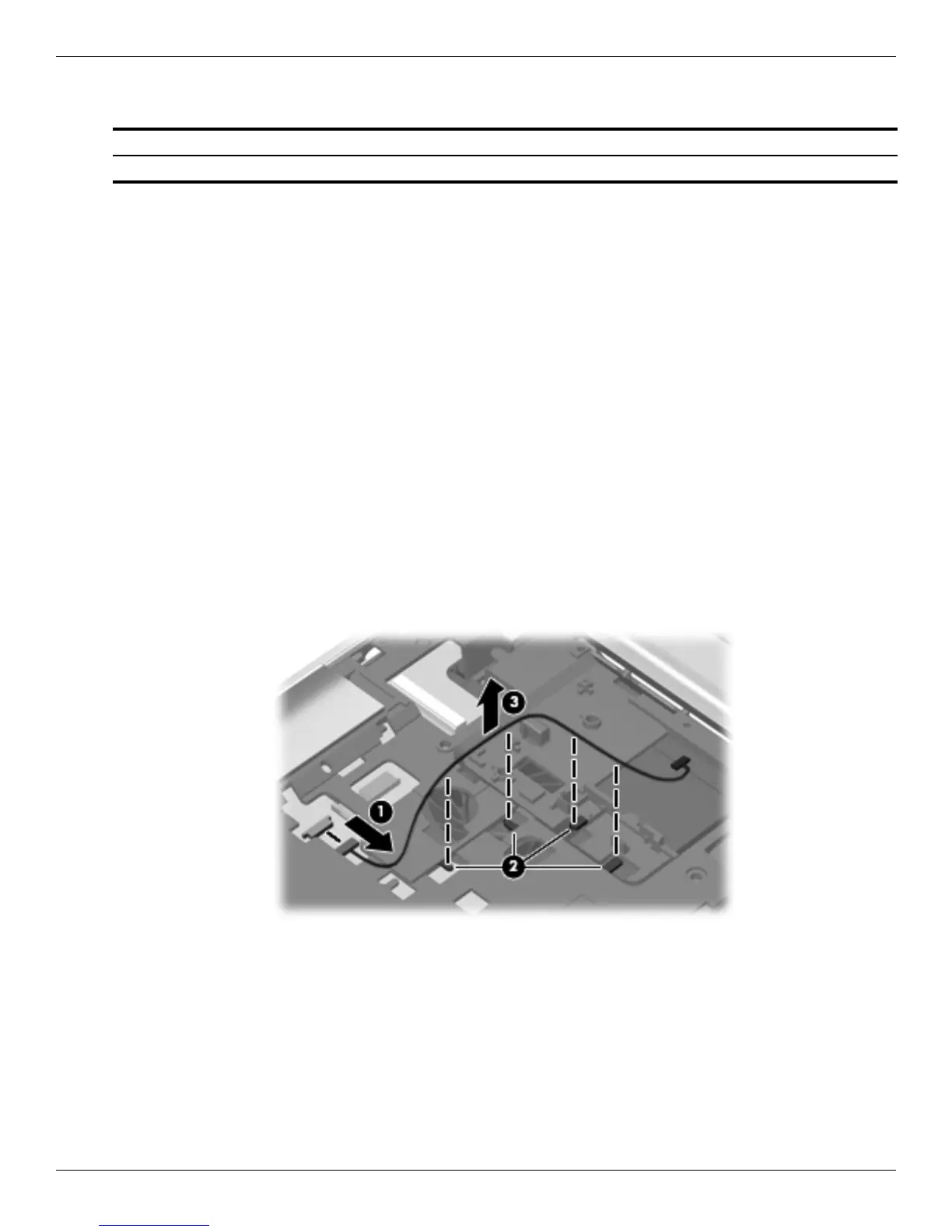

Remove the Bluetooth module cable:
1. Disconnect the Bluetooth module cable 1 from the system board.
2. Release the Bluetooth module cable from the clips 2 built into the top cover.
3. Remove the Bluetooth module cable 3.
Reverse this procedure to install the Bluetooth module cable.
Description Spare part number
Bluetooth module cable 537921-001
To Next Page
