4–28 Maintenance and Service Guide
Removal and replacement procedures
Remove the keyboard:

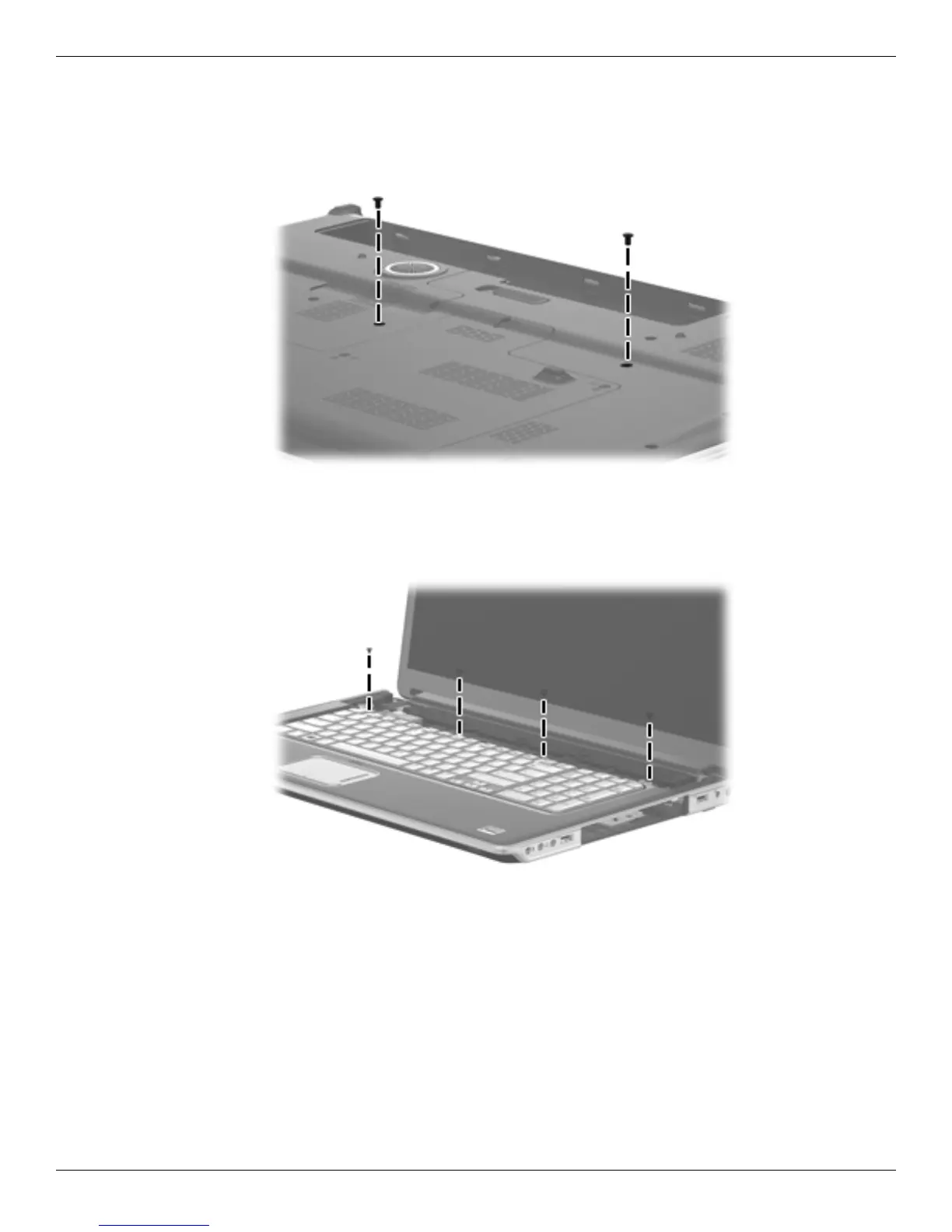

1. Turn the computer upside down, with the front toward you.
2. Remove the two Phillips PM2.5×7.0 screws that secure the keyboard to the computer.
3. Turn the computer display-side up, with the front toward you.
4. Open the computer as far as possible.
5. Remove the four Phillips PM2.0×4.0 screws that secure the keyboard to the computer.
