Removal and replacement procedures
Maintenance and Service Guide 4–45

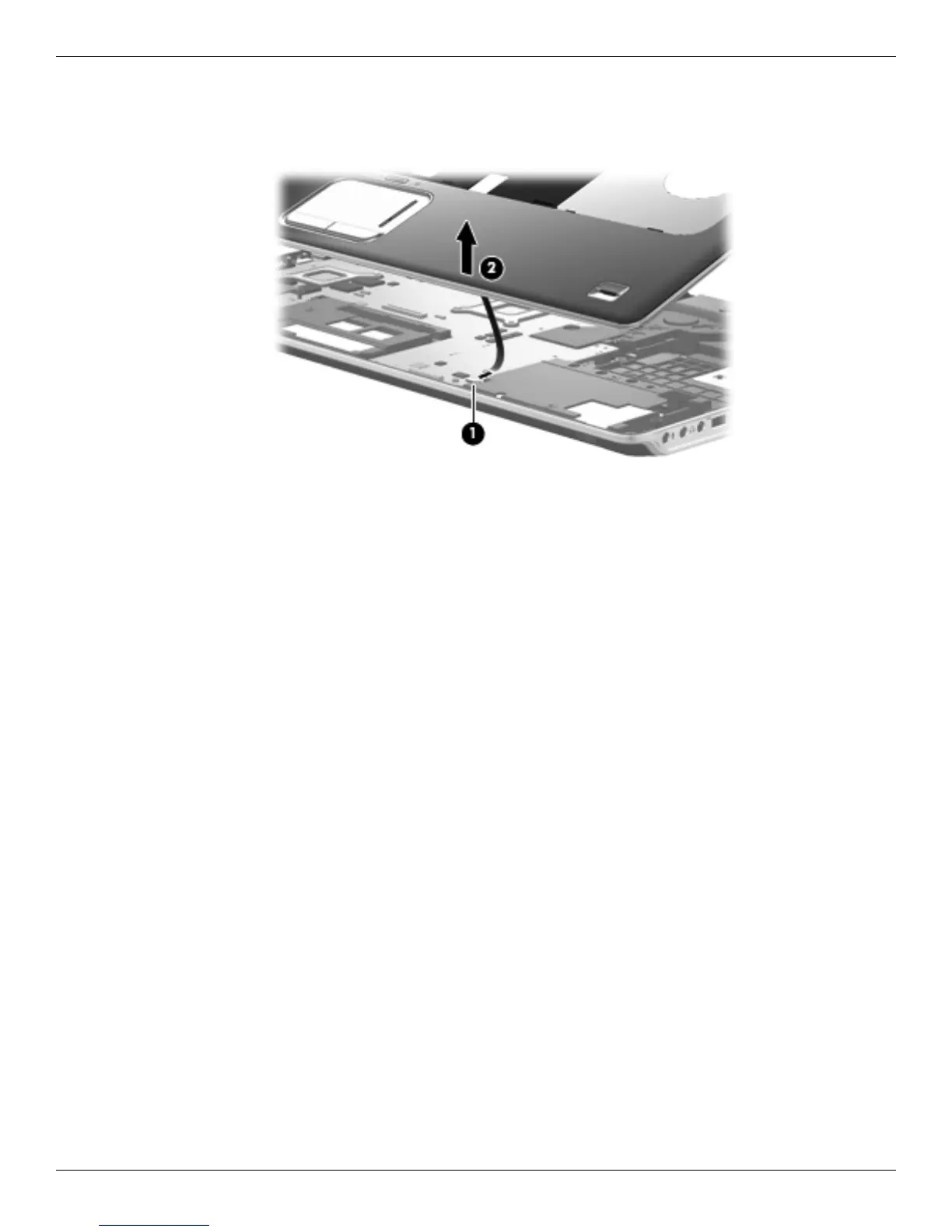

10. Release the ZIF connector 1 to which the fingerprint reader board cable is attached, and disconnect the
fingerprint reader board cable from the system board.
11. Remove the top cover 2.
Reverse this procedure to install the top cover.
