4–54 Maintenance and Service Guide
Removal and replacement procedures

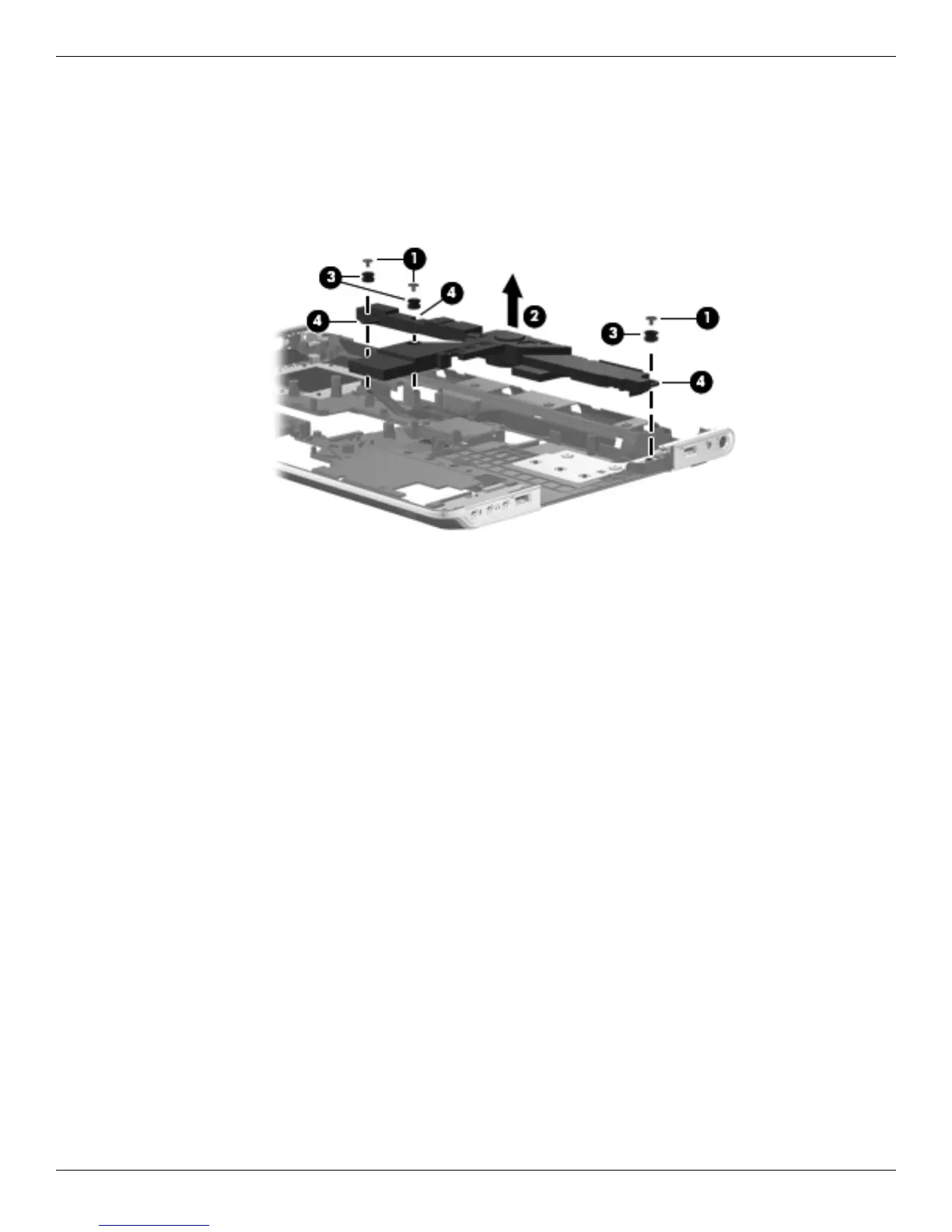

Remove the subwoofer:
1. Remove the three Phillips PM2.5×5.0 broadhead screws 1 that secure the subwoofer to the base enclosure.
2. Remove the subwoofer 2 by lifting it straight up.
✎
The rubber grommets 3 should be inspected and replaced in the correct locations 4 on the subwoofer.
These grommets are critical for satisfactory subwoofer performance.
Reverse this procedure to install the subwoofer.
