4–56 Maintenance and Service Guide
Removal and replacement procedures

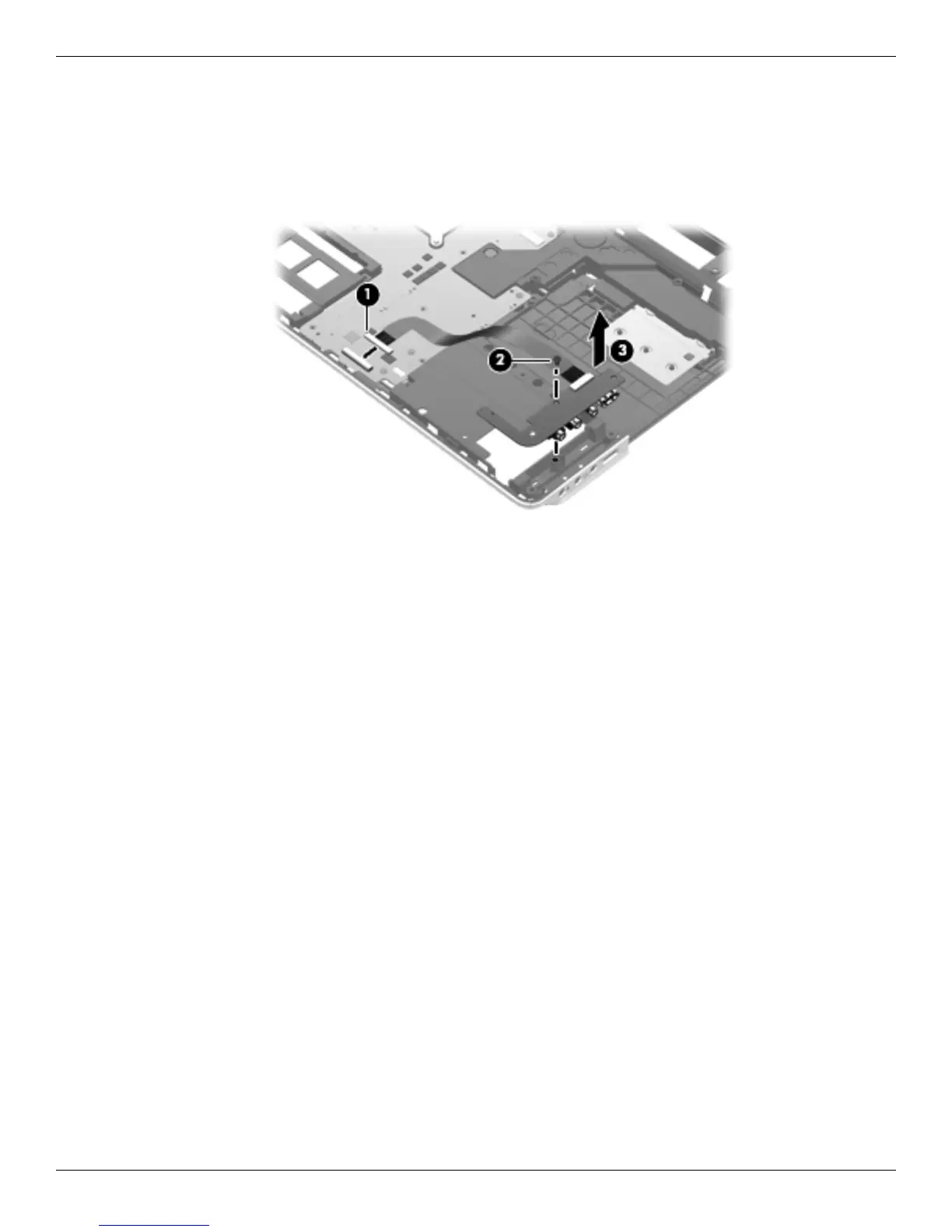

Remove the audio/infrared board:
1. Release the ZIF connector 1 to which the audio/infrared board cable is attached, and disconnect the
audio/infrared board cable from the system board.
2. Remove the Phillips PM2.0×4.0 screw 2 that secures the audio/infrared board to the base enclosure.
3. Remove the audio/infrared board 3 by lifting it straight up.
Reverse this procedure to install the audio/infrared board.
