HP Pavilion g4 - Page 49

3.

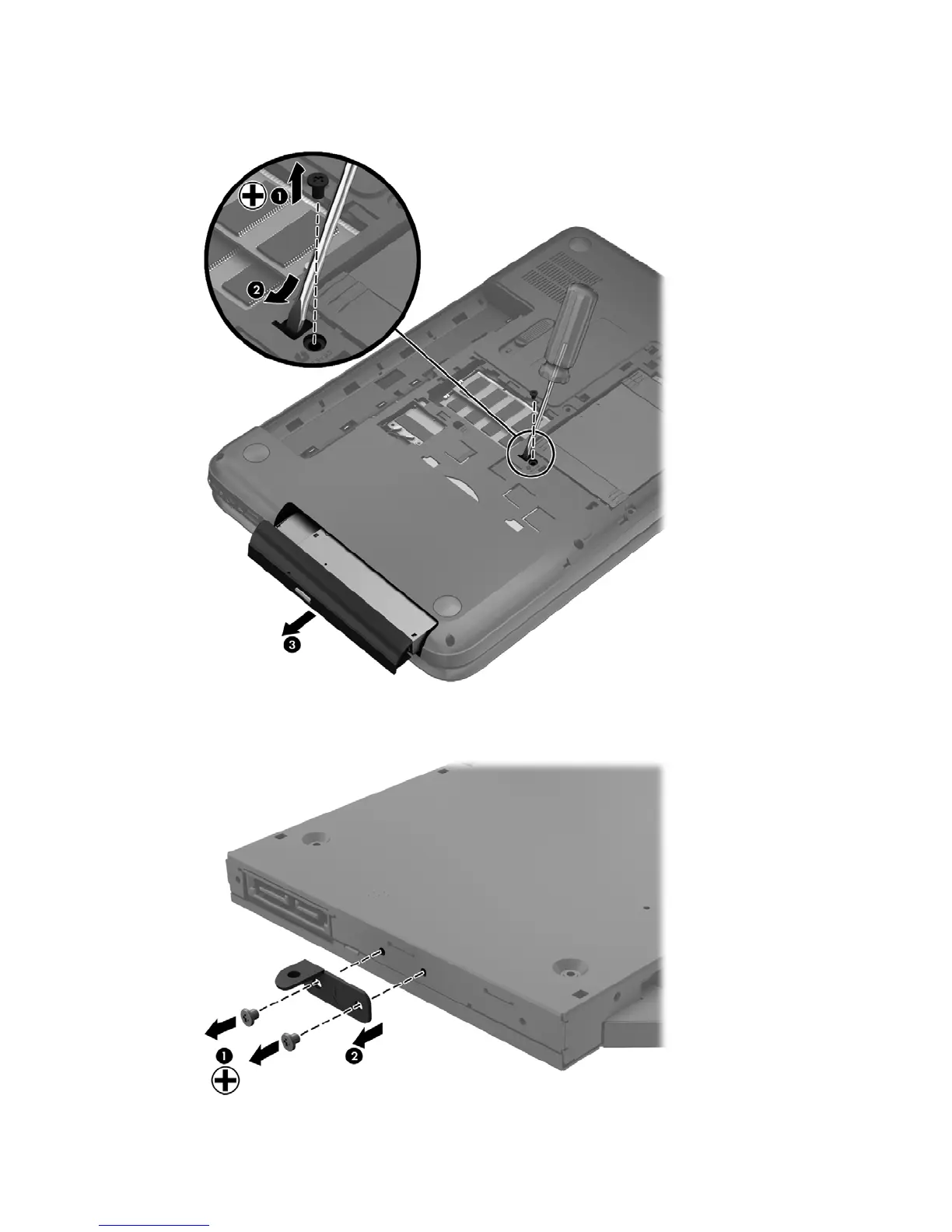

Pull the optical drive (3) out from the front until the optical drive is completely removed from the
computer.
4. Remove the two Phillips M2.0 x 3.0 screws (1) that secure the optical drive bracket to the optical
drive and then remove the bracket (2) from the optical drive.
ENWW
Component replacement procedures
41
