Reverse this procedure to install the USB board.
Power connector
Description Spare part number
Power connector (includes cable) 680548-001
Before removing the power connector, follow these steps:
1.
Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 38).
5.
Remove the service door (see
Service door on page 39).
6. Remove the optical drive (see
Optical drive on page 40).
7. Remove the hard drive (see
Hard drive on page 43).
8. Remove the keyboard (see
Keyboard on page 50).
9. Remove the top cover (see
Top cover on page 53).

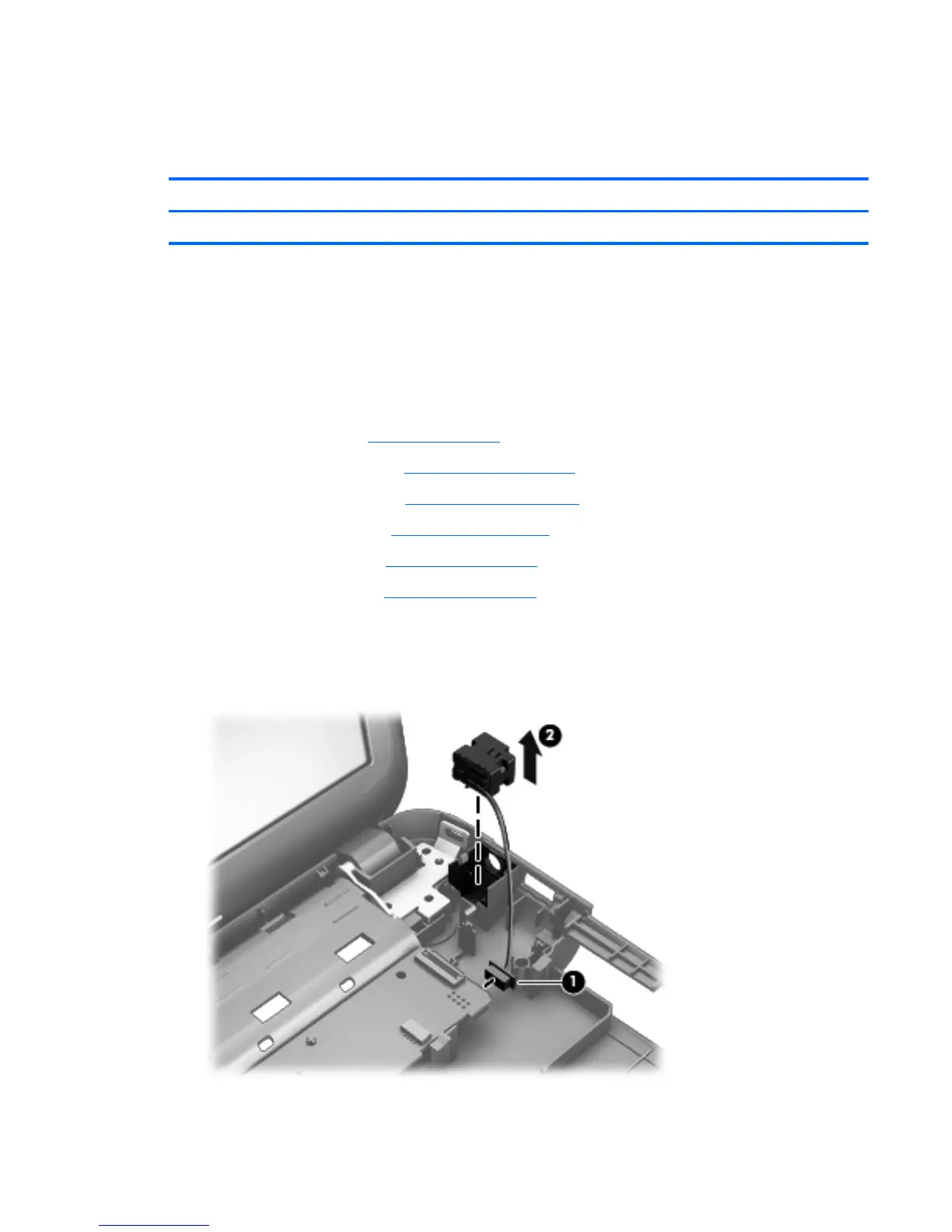

Remove the power connector:
1. Disconnect the power connector cable (1) from the system board.
2.
Remove the power connector from the base enclosure (2).
Reverse this procedure to install the power connector.
ENWW
Component replacement procedures
73
