HP Pavilion g4 User Manual

11.
If it is necessary to replace the wireless antenna cables and transceivers:

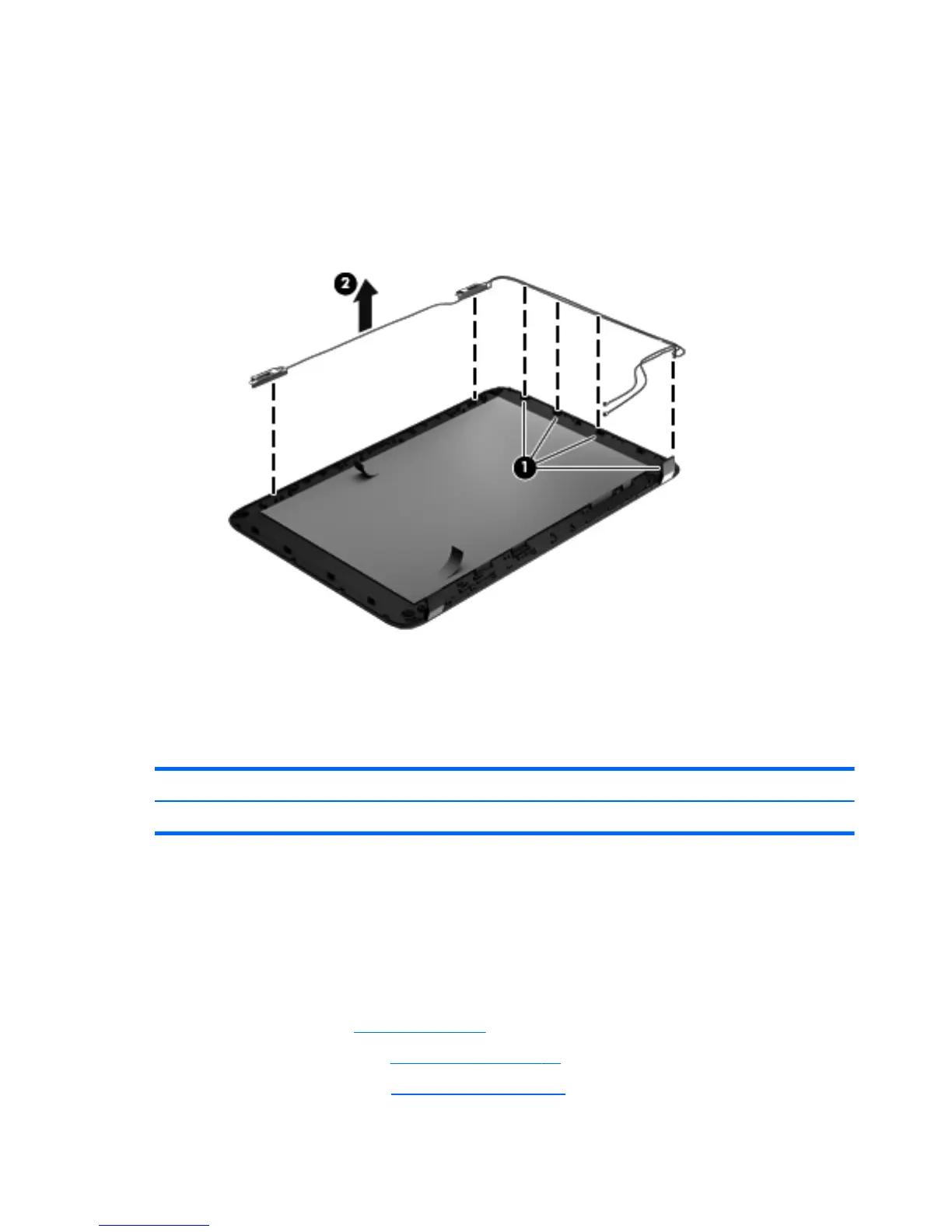

a. Release the wireless antenna cables from the clips (1) built into the display enclosure.
b.
Release the wireless antenna transceivers (2) from the display enclosure. (The wireless
antenna transceivers are attached to the display enclosure with double-sided tape.)
c. Remove the wireless antenna cables and transceivers. The wireless antenna cables and
transceivers are available in the Antenna Kit, spare part number 680539-001.
The display panel is available using spare part number 680562-001.
Reverse this procedure to reassemble and install the display assembly.
Optical drive cable
Description Spare part number
Optical drive cable (includes optical drive connector) 680546-001
Before removing the optical drive cable, follow these steps:
1.
Shut down the computer.
2. Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 38).
5. Remove the service door (see
Service door on page 39).
6. Remove the optical drive (see
Optical drive on page 40).
70 Chapter 4 Removal and replacement procedures ENWW

HP Pavilion g4 Specifications

General

Bus type	DMI
Stepping	J1
Tjunction	85 °C
Processor cache	3 MB
Processor cores	2
Processor model	i3-2350M
System bus rate	5 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-2300 Mobile Series
Processor socket	Socket 988
Processor threads	4
Processor codename	Sandy Bridge
Processor frequency	2.3 GHz
Processor cache type	L3
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	35 W
CPU multiplier (bus/core ratio)	23
Maximum number of PCI Express lanes	16
Motherboard chipset	-
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory layout (slots x size)	1 x 4 GB
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Total storage capacity	500 GB
Compatible memory cards	MMC, SD
Number of HDDs installed	1
HD type	Not supported
Display surface	Gloss
Display diagonal	14 \
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
On-board graphics card ID	0x116
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 3000
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
Audio system	Dolby Advanced Audio v2
Speakers manufacturer	Altec Lansing
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100 Mbit/s
Charging port type	DC-in jack
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
eSATA/USB 2.0 ports quantity	0
Pointing device	Touchpad
Operating system installed	Windows 7 Home Basic
Form factor	Clamshell
Product type	Laptop
Product color	Black
Country of origin	China
Processor code	SR0DN
Processor ARK ID	53438
Processor package size	37.5 x 37.5 (rPGA988B); 31 x 24 (BGA1023) mm
Supported instruction sets	AVX
Intel Identity Protection Technology version	1.00
Battery capacity	47 Wh
Battery life (max)	- h
Number of battery cells	6
AC adapter power	65 W

Weight and Dimensions

Depth	230.4 mm
Width	347 mm
Weight	2190 g
Height (rear)	35.9 mm
Height (front)	30 mm
