b.

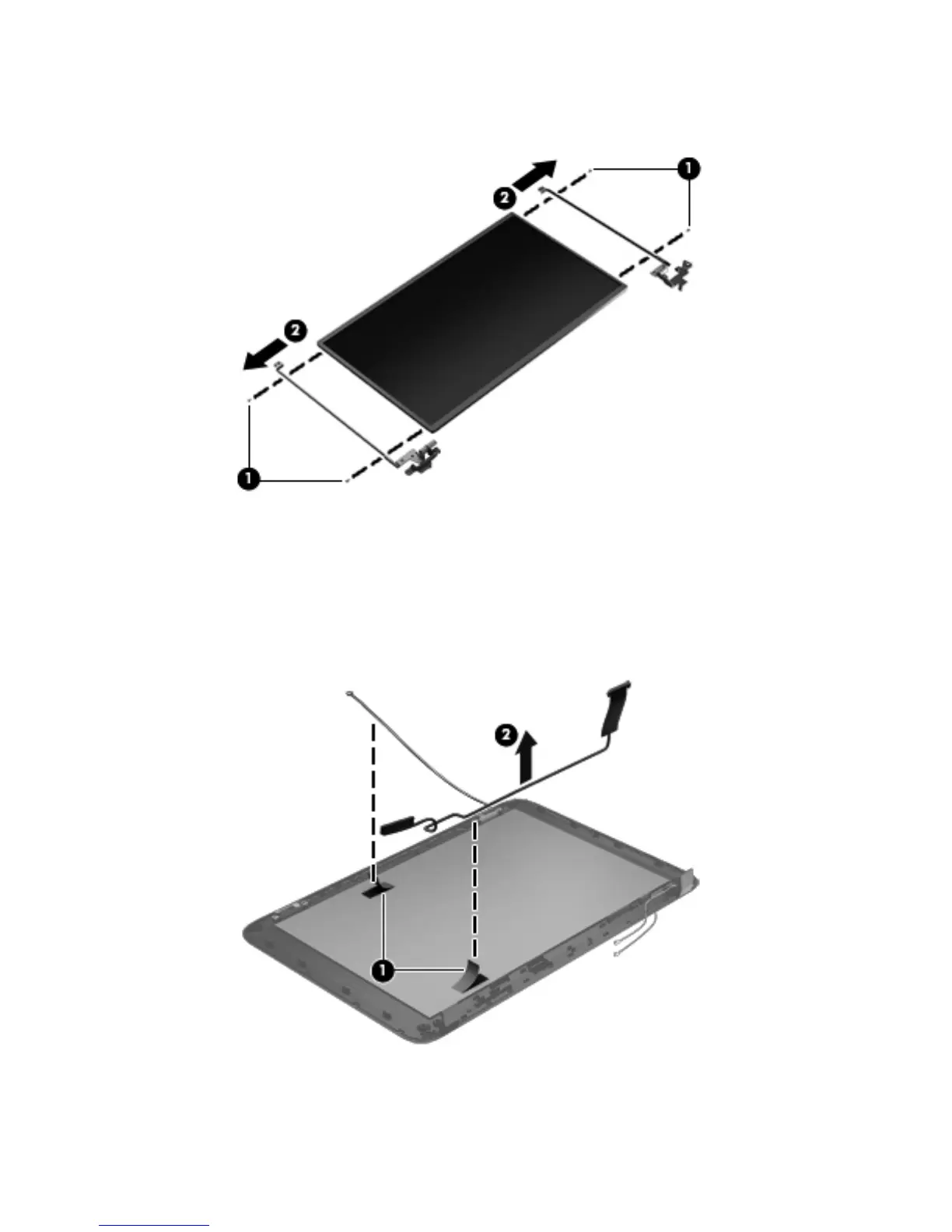

Remove the display hinges (2). The display hinges include the display hinges and brackets
and are available using spare part number 680554-001.
10.
If it is necessary to replace the display panel cable:
a. Release the adhesive and tabs (1) on the display enclosure shielding that secure the display
panel cable to the display enclosure.
b. Release the display panel cable from the clips in the display panel and remove the display
panel cable (2). The display panel cable includes the webcam/microphone module cable
and is available in the Display Panel Cable Kit, spare part number 680547-001.
ENWW
Component replacement procedures
69
