2.

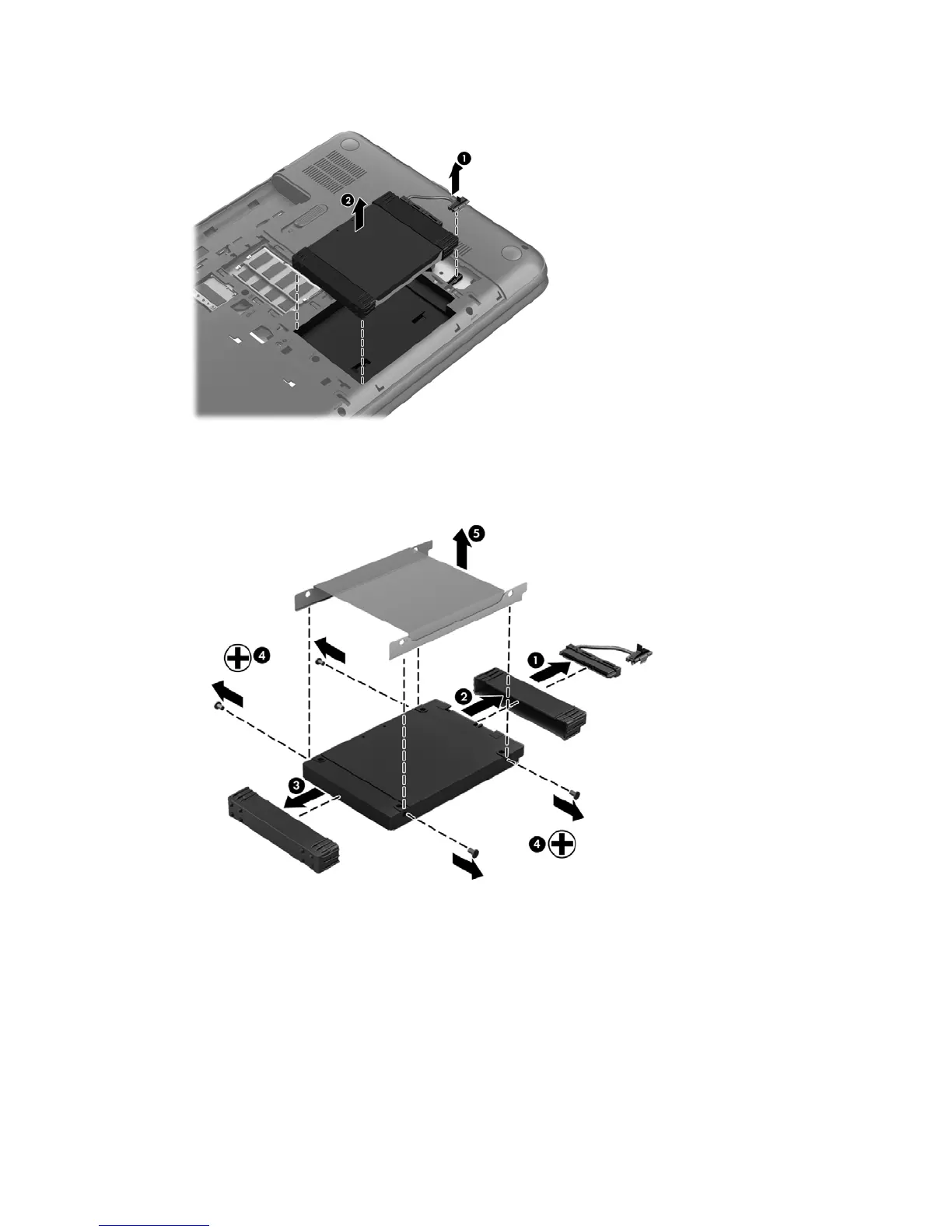

Lift the hard drive (2) to remove.
3. Disconnect the hard drive cable (1). Remove the front bumper (2) and back bumper (3).
4. Remove the four Phillips M3.0×3.5 screws (4), and then remove the bracket (5) from the hard
drive.
To install a hard drive, reverse the removal procedure.
44 Chapter 4 Removal and replacement procedures ENWW
