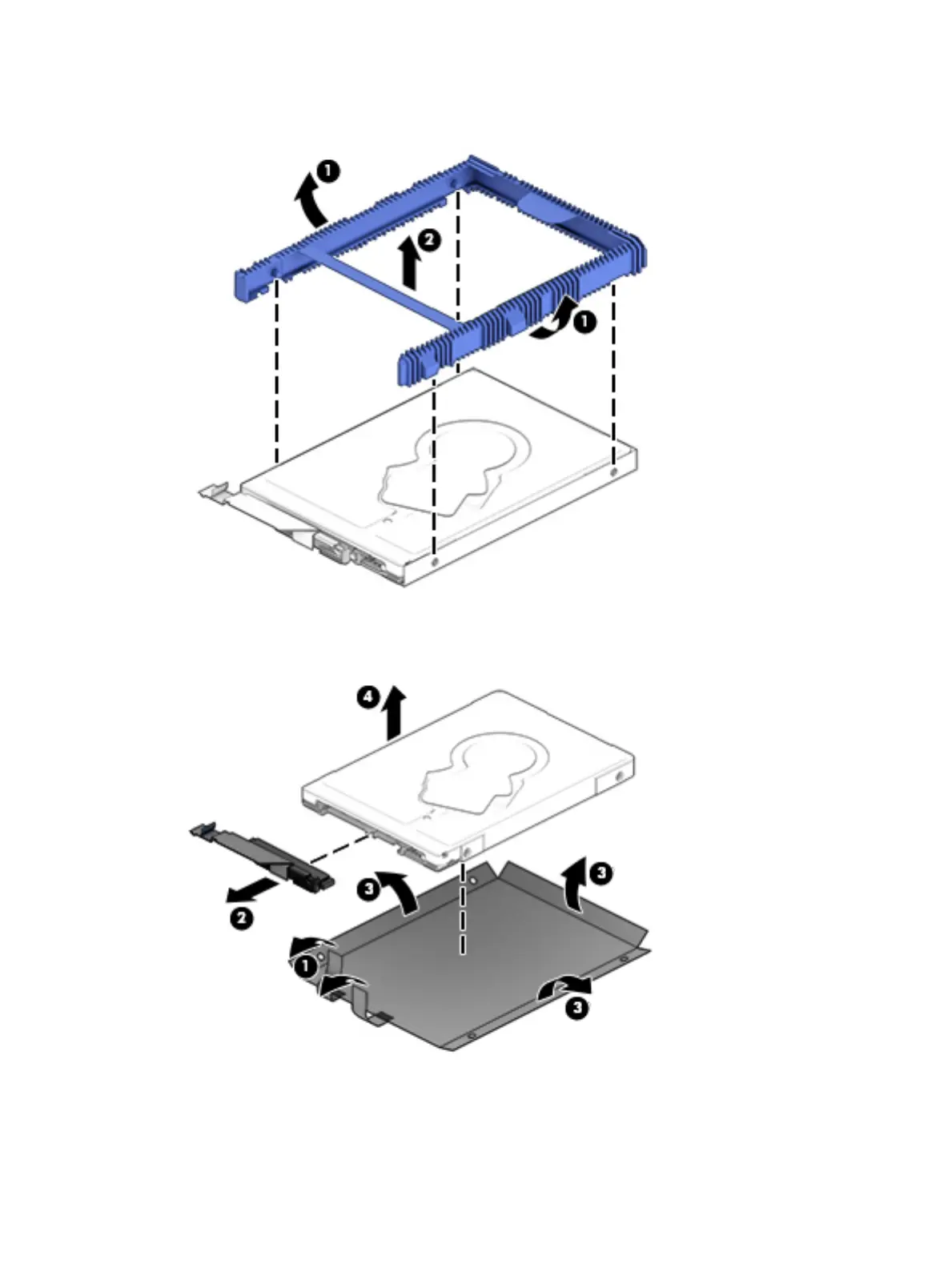

3. If it is necessary to remove the rubber hard drive cover, pull the sides of the cover outward (1), and then
remove the cover from the hard drive (2).
4. If it is necessary to remove the foil from the hard drive, lift the two foil tabs from on top of the connector
(1), disconnect the connector from the rear of the drive (2), pull to disengage the sides of the foil (3),
and then remove the hard drive from the foil (4).
38 Chapter 5 Removal and replacement procedures for authorized service provider parts
