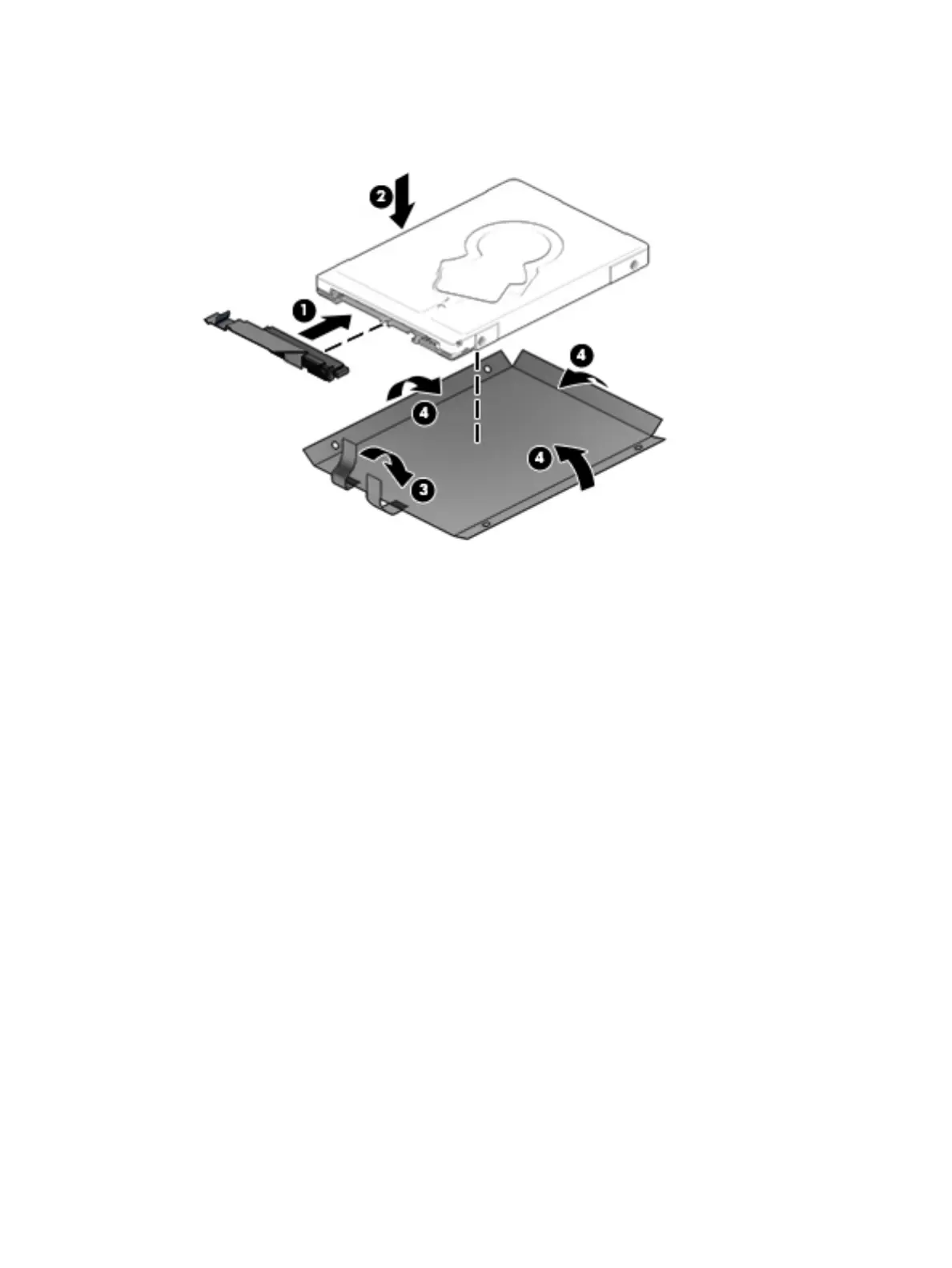

5. If it is necessary to install foil on the hard drive, insert the connector onto the rear of the drive (1), center
the hard drive to the foil (2), place the foil tabs over the connector (3), and then adhere the sides of foil
onto the sides of the hard drive (4).
Reverse this procedure to reassemble and install the hard drive.
Component replacement procedures 39
