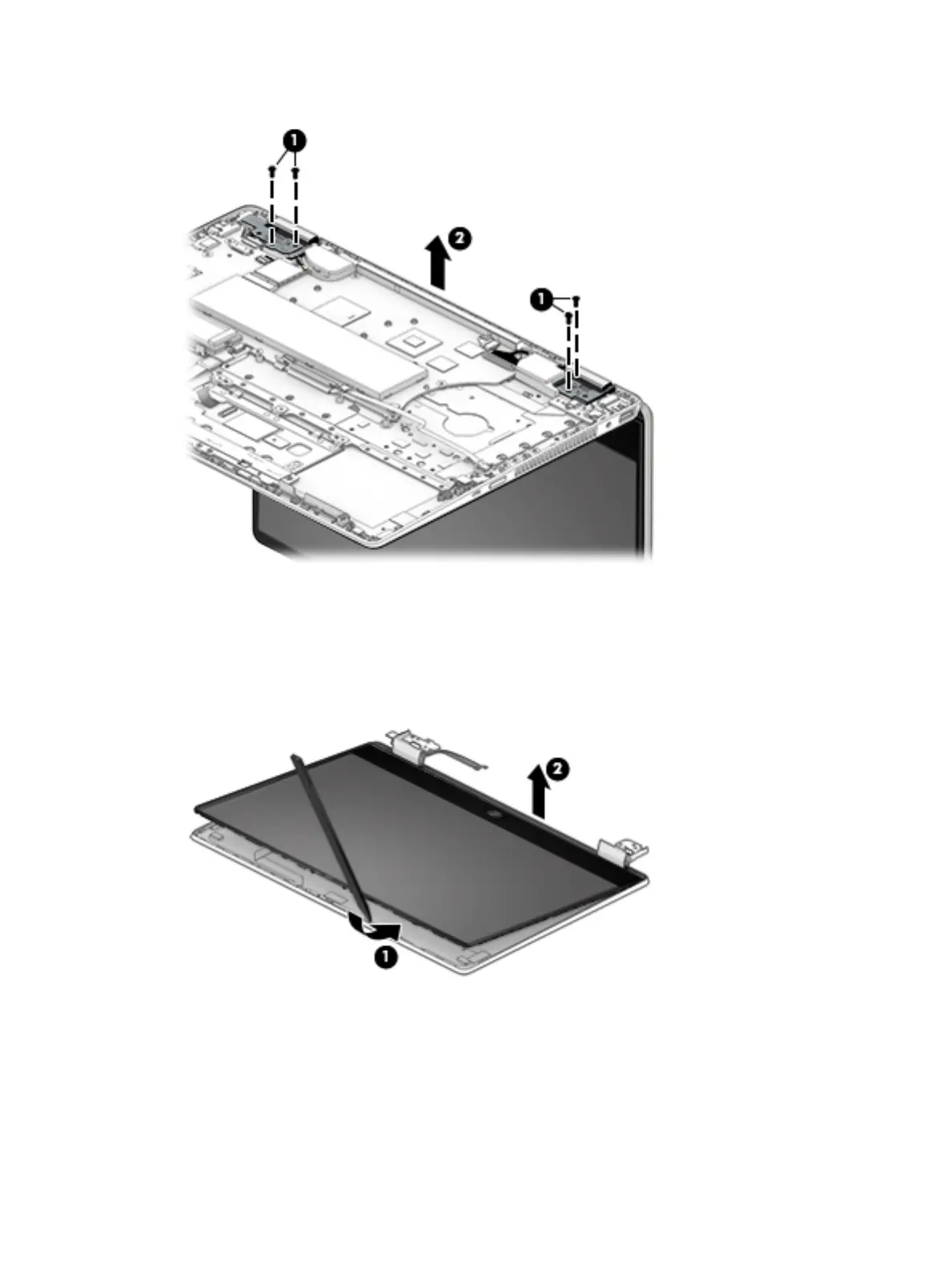

8. Separate the display from the computer by pulling the chassis away from the display (2).
9. To remove the display panel:
a. Use a plastic tool and work around the entire display to separate it from the display enclosure (1).
b. Remove the display panel (2).
Display panels are available using spare part number L51119-001 for FHD, 250 nit panels,
L54600-001 for FHD, 400 nit panels, and L51120-001 for HD panels.
10. If it is necessary to replace the g-sensor board from the display panel:
a. Disconnect the cable from the ZIF connector on the g-sensor board (1).
60 Chapter 5 Removal and replacement procedures for authorized service provider parts
