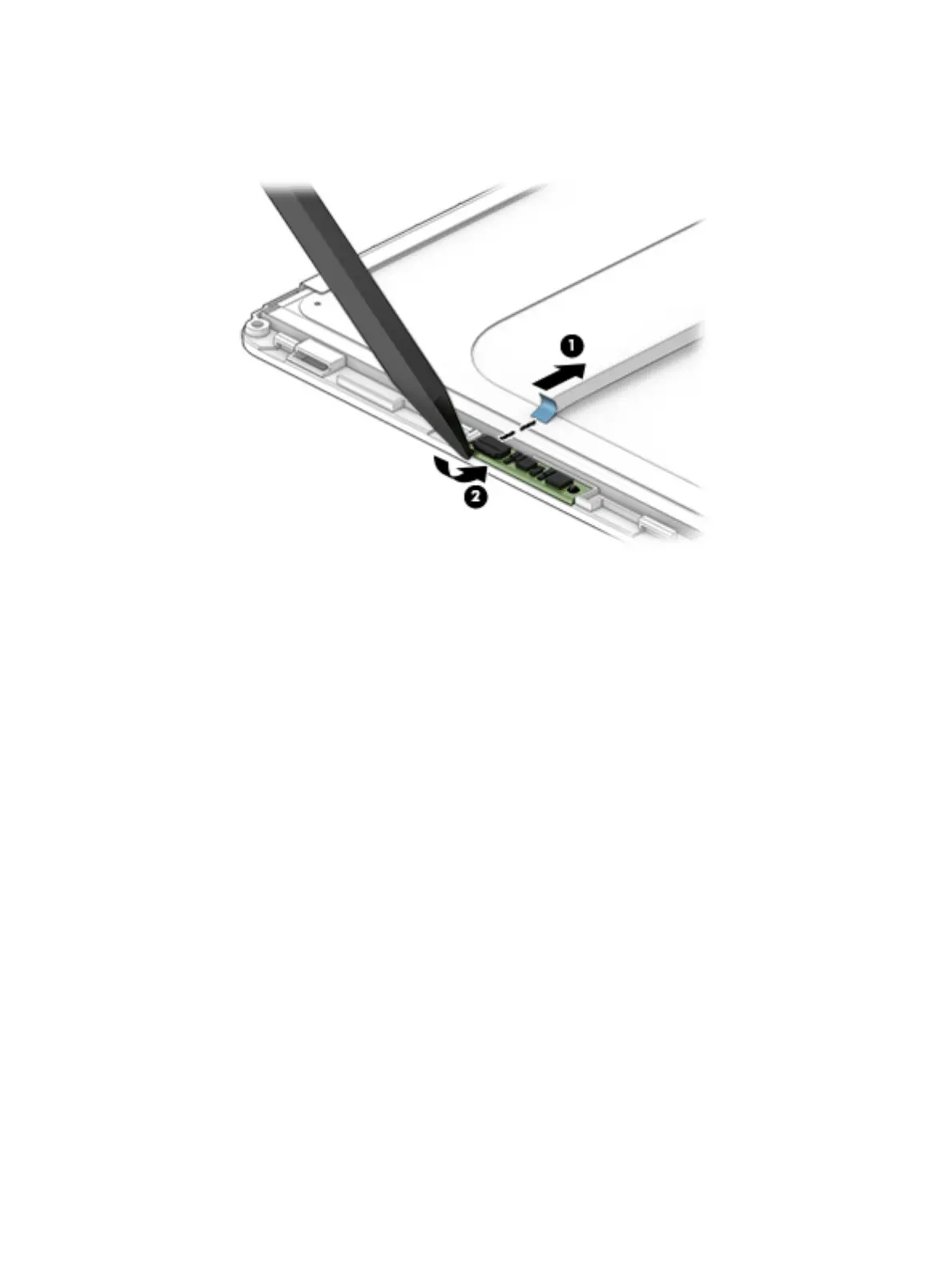

b. Use a plastic tool to detach the board from the top of the display (2). The g-sensor board is
attached to the display with double-sided adhesive.
The g-sensor board is available using spare part number L51111-001.
11. If it is necessary to replace the display/touch control board cable from the display panel:
a. Disconnect the cable from the ZIF connector on the board (1).
b. Peel the tape from the top of the display connector at the bottom of the panel (2).
c. Peel the clear tape from the top of the connector (3), and then pull the cable out of the connector
(4).
Component replacement procedures 61
