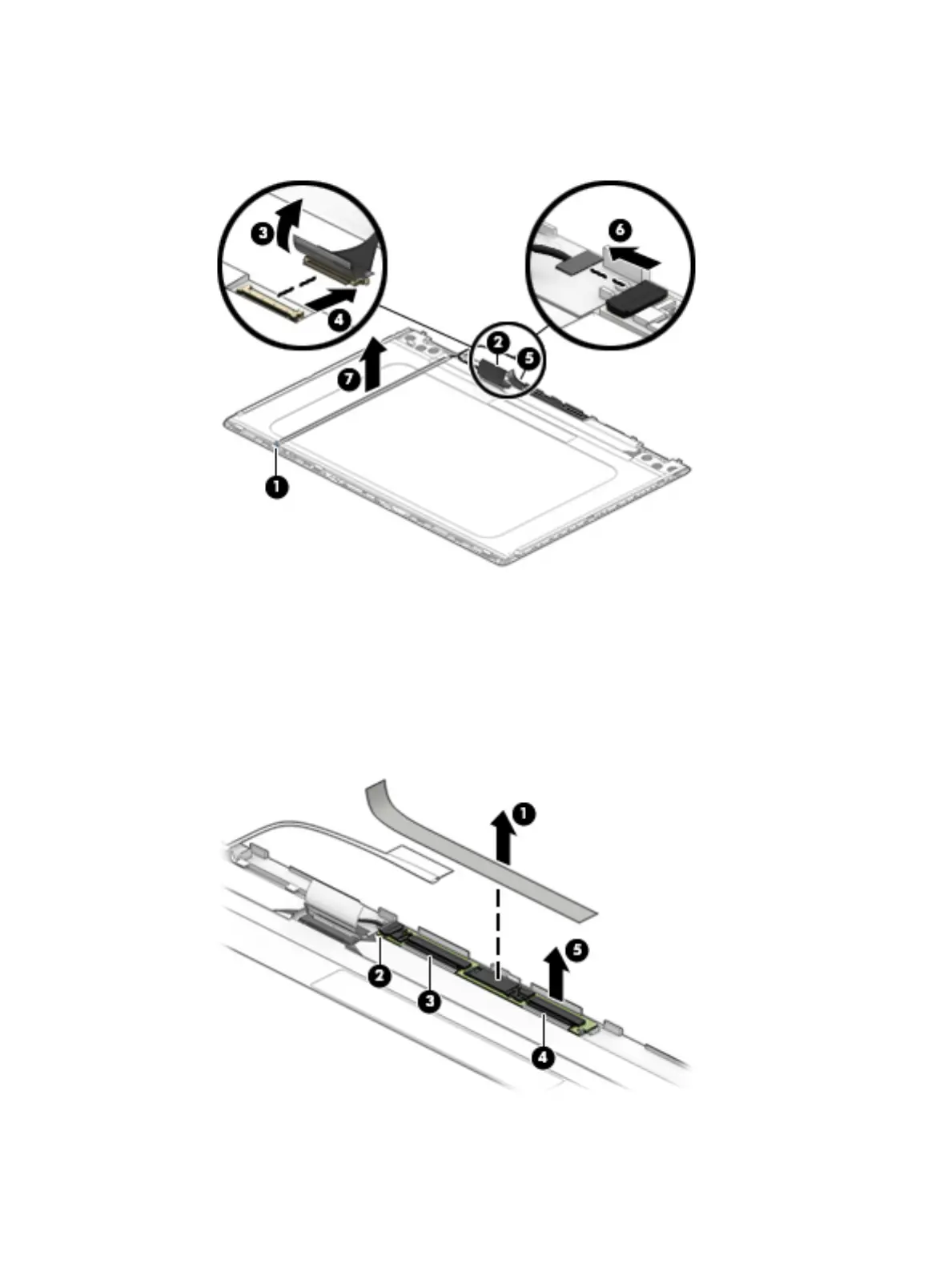

d. Lift the tape from the touch control board connector (5), and then disconnect the cable from the
connector (6).
The display/touch control board cable is available using spare part number L51097-001.
12. If it is necessary to replace the touch control board from the display panel:
a. Peel the tape from the top of the touch control board (1).
b. Disconnect the cable from the end of the board (2).
c. Disconnect the two cables from the two ZIF connectors on the board (3) (4).
d. Remove the board from the panel (5).
The touch control board is available using spare part number L51114-001.
13. If it is necessary to replace the camera/microphone module:
62 Chapter 5 Removal and replacement procedures for authorized service provider parts
