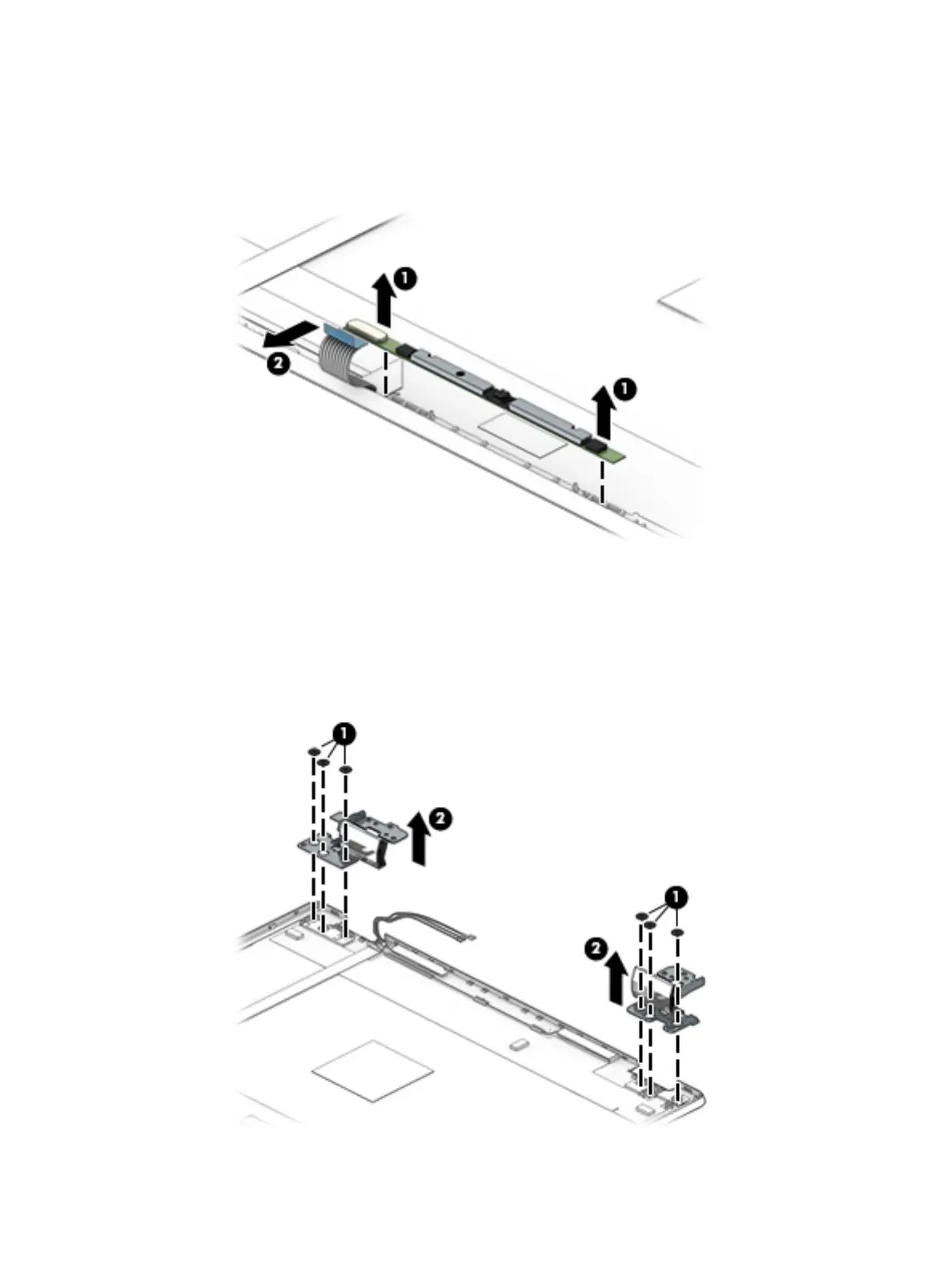

a. Lift evenly on both sides of the module to detach the module from the display back cover (1). The
camera/microphone module is attached to the display back cover with double-sided adhesive.
b. Disconnect the cable (2) from the camera/microphone module.
The camera/microphone module is available using spare part number L51139-001.
14. If it is necessary to replace the display hinges:
a. Remove the three Phillips M2.0 × 3.0 screws (1) that secure each display hinge to the display back
cover.
b. Remove the display hinges (2).
The display hinges are available using spare part number L51105-001 for models with an FHD
display and L51106-001 for models with an HD display.
Component replacement procedures 63
