Planning
Planning Your PoE Configuration
HP ProCurve Switch xl PoE Module Configurations
For the HP ProCurve Switch xl PoE Module to function it must be installed in
an HP ProCurve Switch 5300xl. The module will receive it’s operational power
from the switch and its PoE power from the HP 600 RPS/EPS.

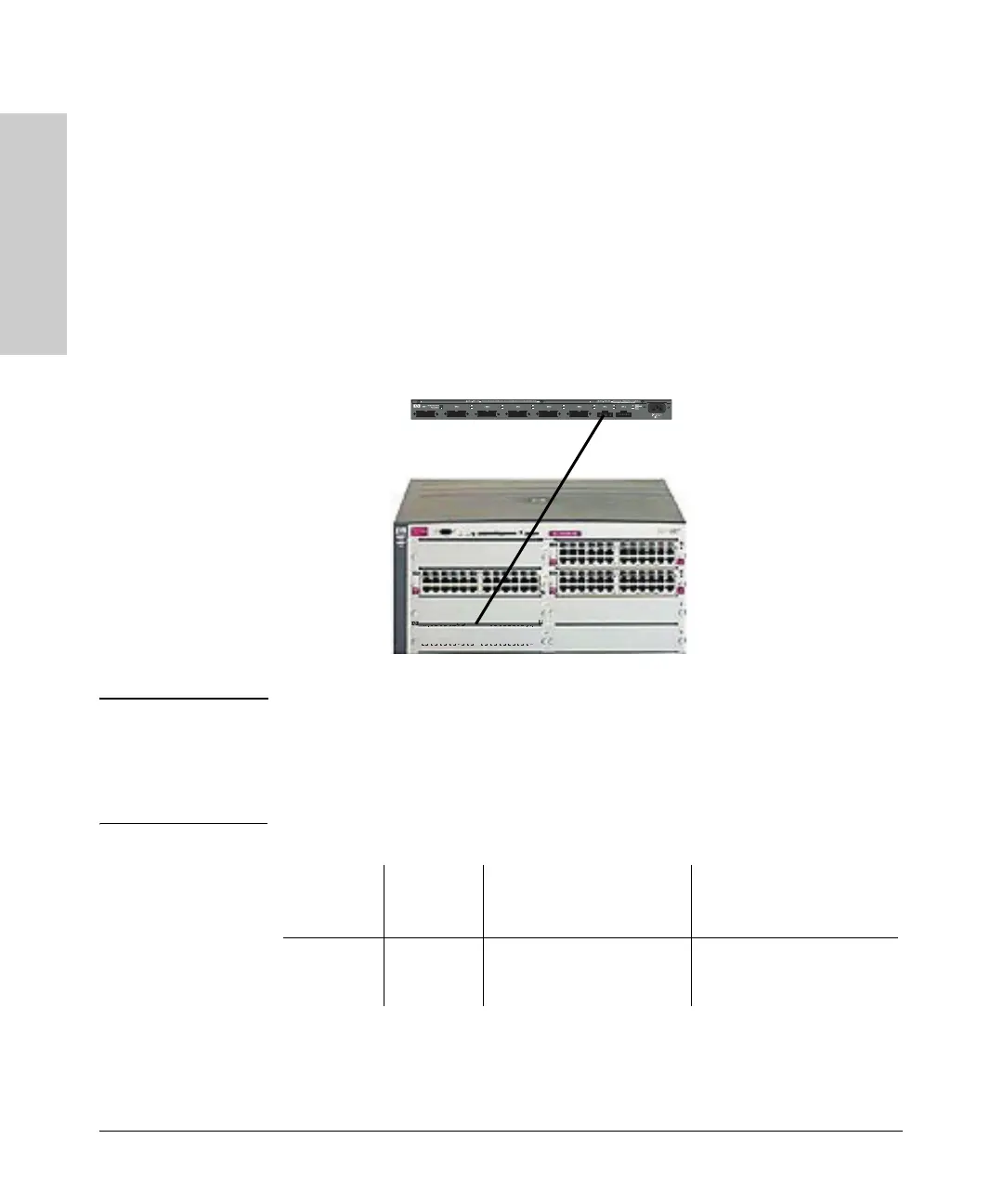

With an HP 600 RPS/EPS Powering One Module
In this example there is only one module connected to the HP 600 RPS/EPS,
therefore it will be supplied with 368 watts of PoE power to be distributed to
all its 24 ports at 15.4 watts per port.
Planning








Note When planning the installation of the HP ProCurve Switch xl PoE Module you
must pay attention to the cabling. In a rack type installation, the HP 600 RPS/
EPS is installed with the EPS ports in the rear, opposite this graphic. This
means the EPS cable must come from the back of the HP 600 RPS/EPS unit
and connect to the front of the module.
Source of
Power
Watts
Available
# of Ports Powered and
Average Watts/Port
Redundant # of Ports
Powered and Average Watts/
Port
External PoE
Power
Supply
368 24 @ average 15.4 W each None
3-8
