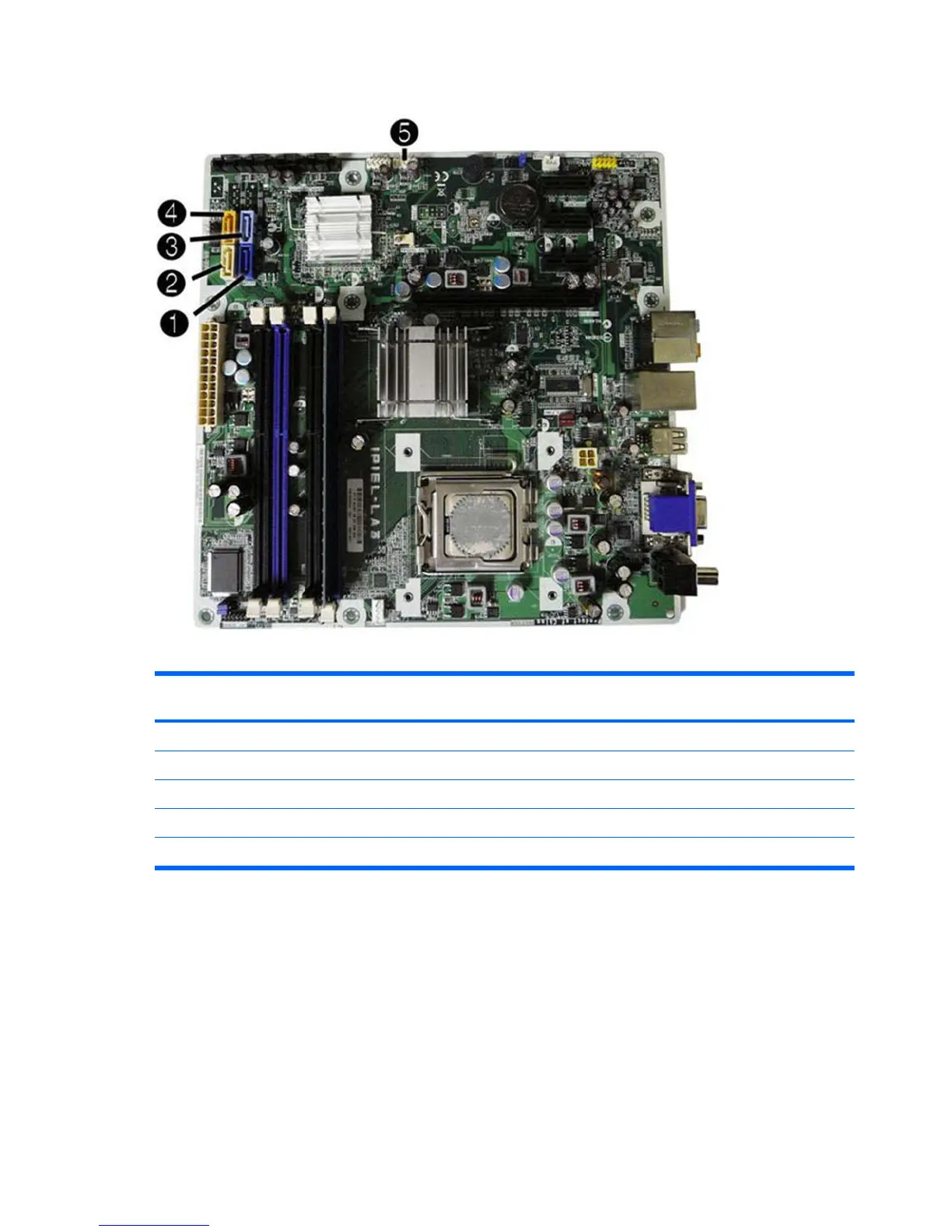

Figure 7-19 System Board Drive Connectors – HP Pro 3010
Table 7-4 System Board Drive Connectors
No. System Board
Connector
System Board Label –
HP Pro 3000/3080
Color System Board Label –
HP Pro 3010
Color
1 SATA1 SATA1 dark blue SATA0 dark blue
2 SATA2 SATA2 white SATA1 white
3 SATA3 SATA3 light blue SATA2 light blue
4 SATA4 SATA4 orange SATA3 orange
5 Media Card Reader MEDIA black F_USB2 white
104 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
