Front I/O and USB Panel Housing Assembly
1. Prepare the computer for disassembly (Preparation for Disassembly on page 35).
2. Remove the access panel (
Access Panel on page 36)
3. Lay the computer on its side with the front facing toward you.
4. Remove the front bezel (
Front Bezel on page 37).
5. Unplug the four cables that connect the assembly to the system board. The assembly cables
connect to the following system board connectors:
●
F_AUDIO– yellow
●
F_USB1 – white

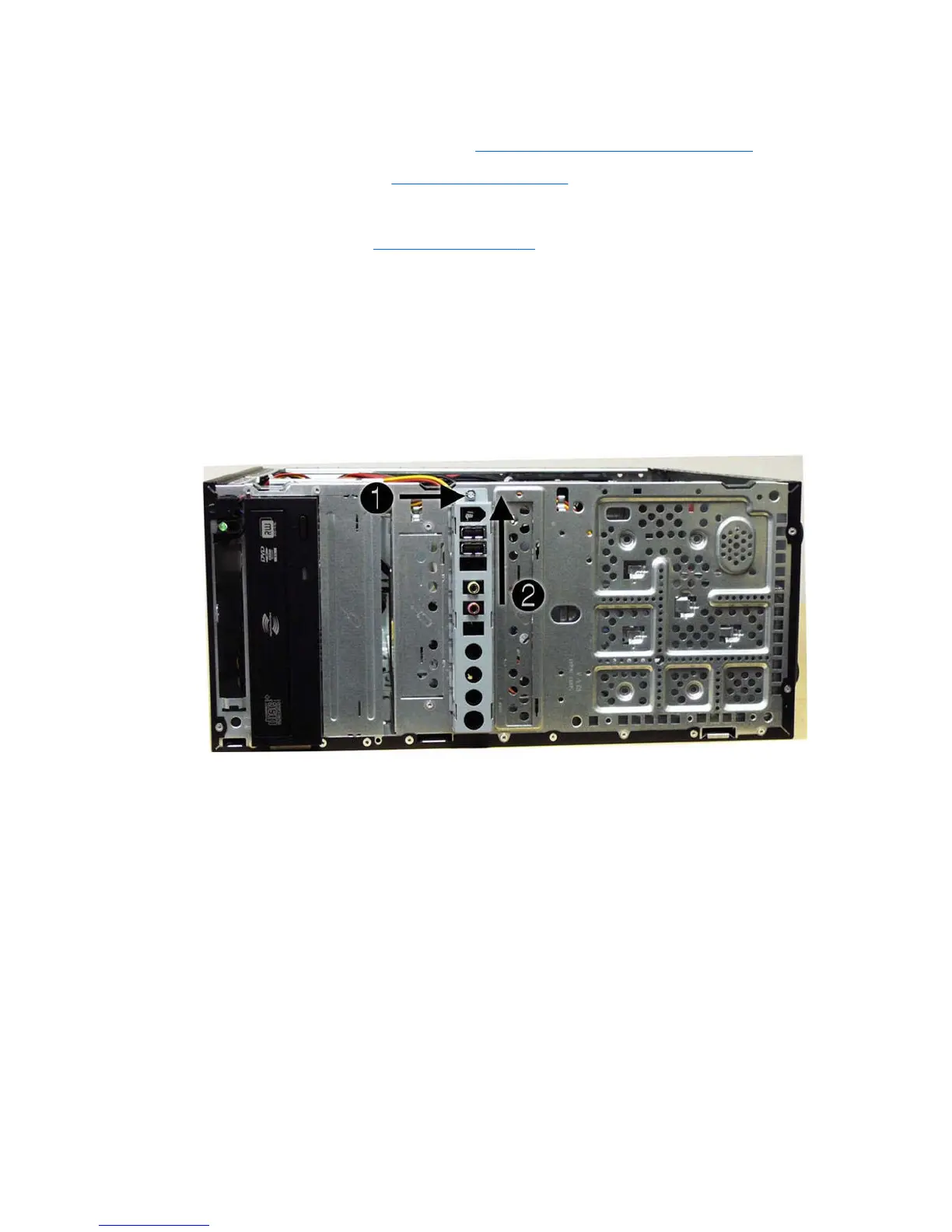

6. Remove the screw (1) that secures the housing to the chassis, slide the housing up (2), and then
pull the assembly away from the chassis while guiding the cables through the hole in the
chassis.
To install the housing assembly, reverse the removal procedures.
Front I/O and USB Panel Housing Assembly 67
