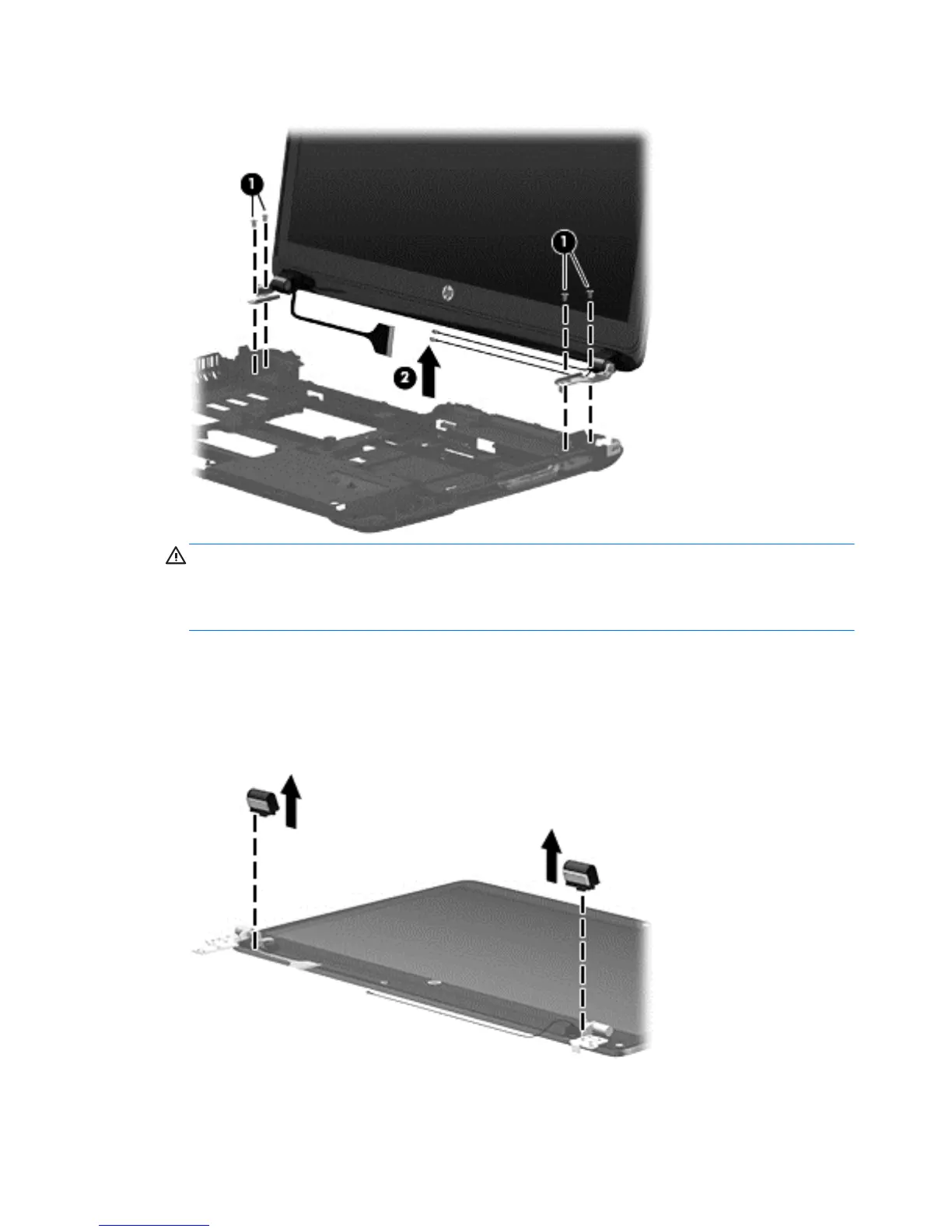

8. Lift the display assembly straight up and remove it (2).
CAUTION: When installing the display assembly, be sure that the wireless antenna cables are routed
and arranged properly.
Failure to properly route the antennas can result in degradation of the computer's wireless
performance.
9. If you need to remove the hinge covers from the display hinges, squeeze and pull the covers straight up
and off the display to remove them.
If you need to remove the hinge covers from the display hinges, pinch the top and bottom of the hinges
and then pull the hinges straight up and off the display.
Display hinge covers are available in the Display Hinge Kit using spare part number 721514-001.
10. If you need to remove the display bezel, remove the 2 mylar screw covers (1) and the 2 Phillips
PM2.5×4.0 screws (2) in the bottom corners of the display bezel.
80 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
