13. If it is necessary to replace the webcam or microphone module, disconnect the cable from the module
(1), and then gently pull the module away from the double-sided tape on the display enclosure (2).
The webcam module is available using spare part number 721543-001, and the microphone module is
available using spare part number 721526-001.
NOTE: The removal and replacement procedure is the same for the webcam and microphone modules.

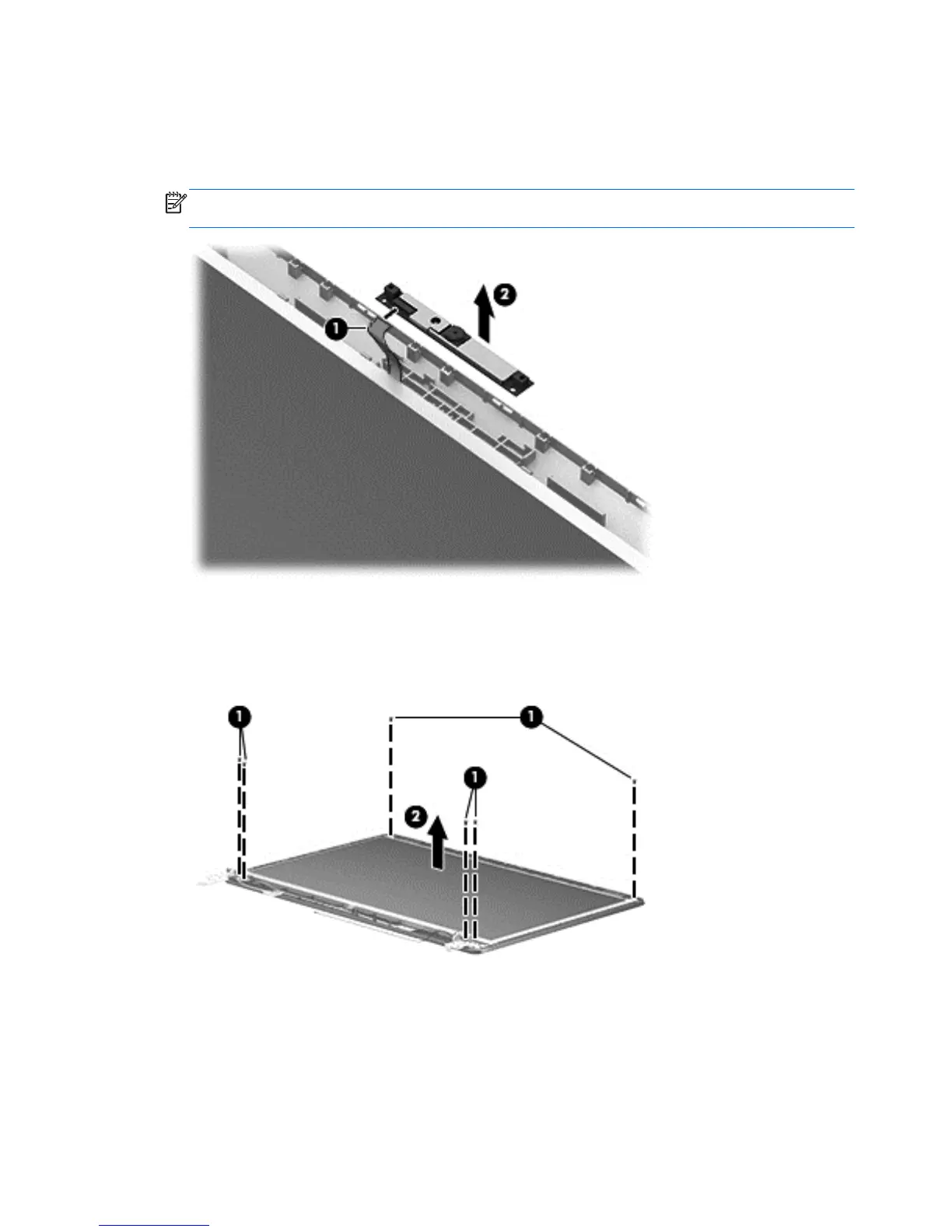

The following image illustrates a webcam module.
14. If it is necessary to replace the display hinges, remove the 6 Phillips PM2.5×3.0 screws (1) that secure
the display hinges and panel to the display enclosure.
Display hinges are available in the Display Hinge Kit using spare part number 721514-001.
15. Remove the display hinges and panel from the display enclosure (2).
16. Position the display panel and hinge assembly upright.
17. Remove the 3 Phillips PM1.5×2.0 screws (1) that secure each display hinge to the display panel.
82 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
