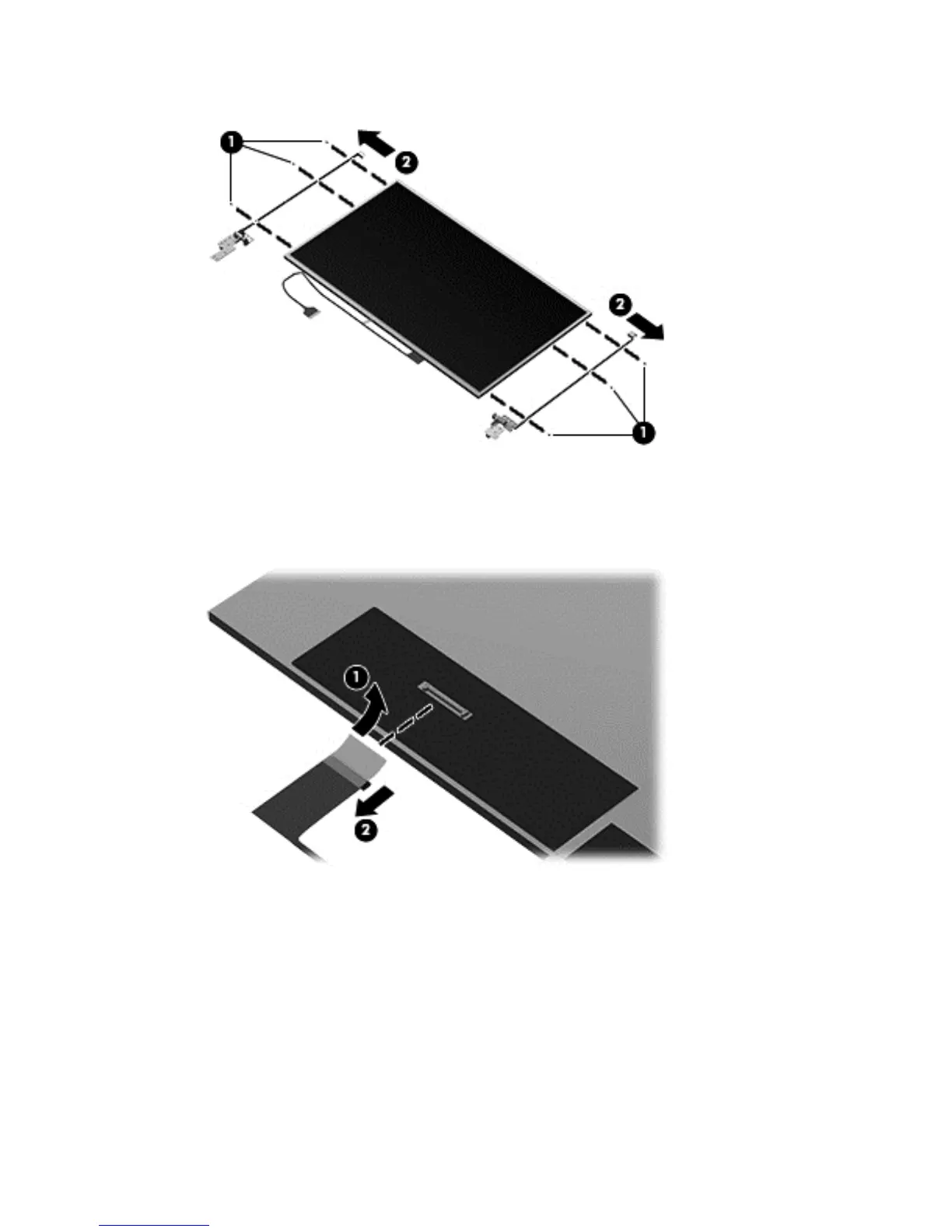

18. Remove the display hinges (2).
19. If it is necessary to remove the display/webcam cable assembly, disconnect the display panel cable
from the rear of the display panel by lifting the tape (1) that covers the connector, and disconnecting
the cable from the panel (2).
The display/webcam cable assembly is available in the Cable Kit, spare part number 721510-001.
Component replacement procedures 83
