Hard drive
Table 5-7 Hard drive descriptions and part numbers
Description Spare part number
Hard drive, 1 TB, 7200 rpm, 9.5 mm 766644-002
Hard drive, 1 TB, 5400 rpm, 7 mm 832077-002
Hard drive, 500 GB, 7200 rpm, 7 mm 703267-002
Hard drive, 1 TB, 5400 rpm, 7 mm 832077-002
Hard Drive Hardware Kit (includes hard drive cover and connector) L44510-001
Before removing the hard drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 33).
2. Place the computer in Battery Safe mode (Battery Safe mode on page 33).
3. Remove the bottom cover (Bottom cover on page 34).
4. Remove the battery (Battery on page 36).
Remove the hard drive:

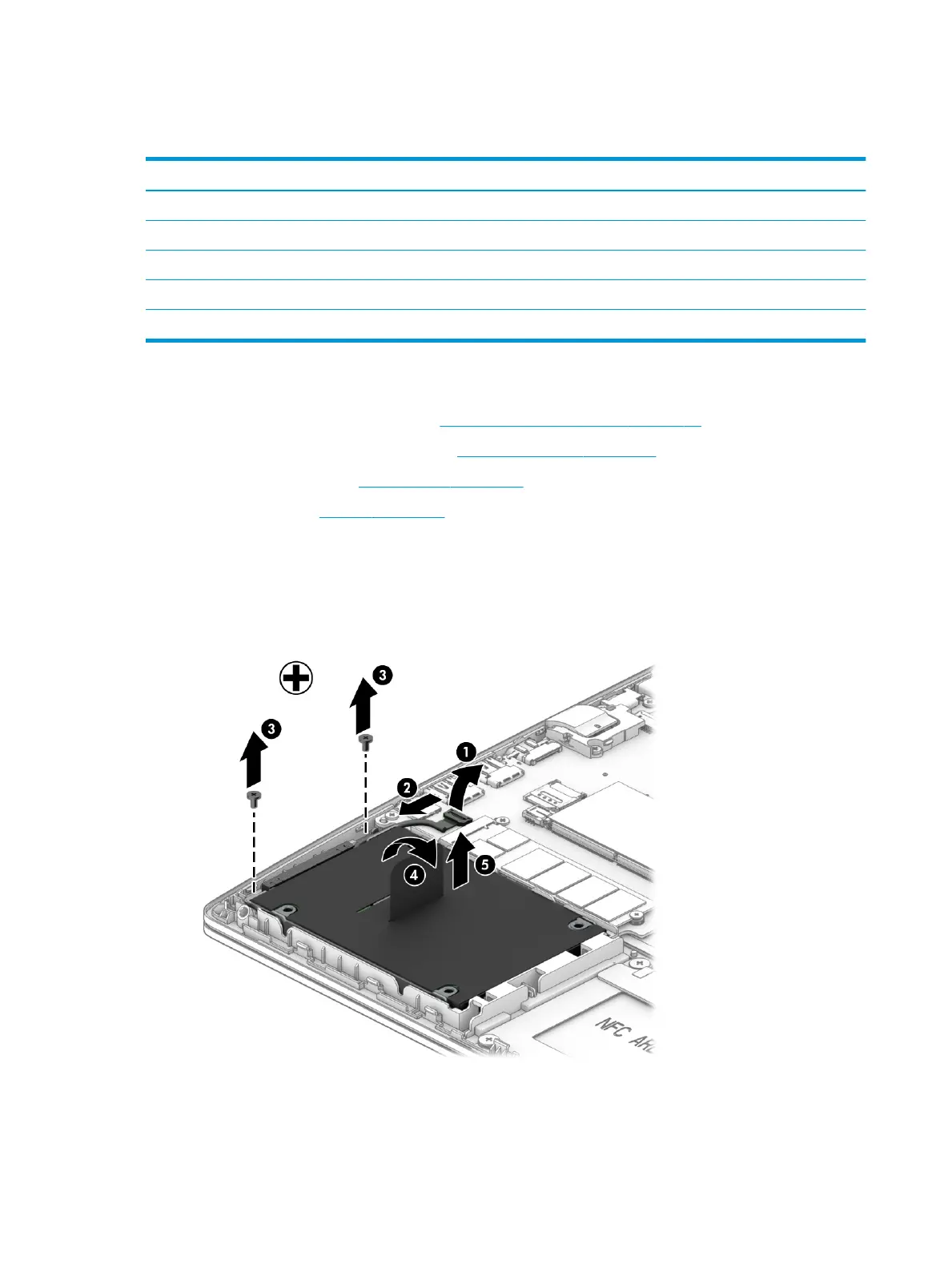

1. Release the ZIF connector (1), and then disconnect the hard drive cable from the system board (2).
2. Remove the two Phillips M2.0 × 4.0 screws (3) that secure the hard drive to the computer.
3. Use the tab (4) to lift the hard drive from the bay (5).
44 Chapter 5 Removal and replacement procedures for authorized service provider parts
