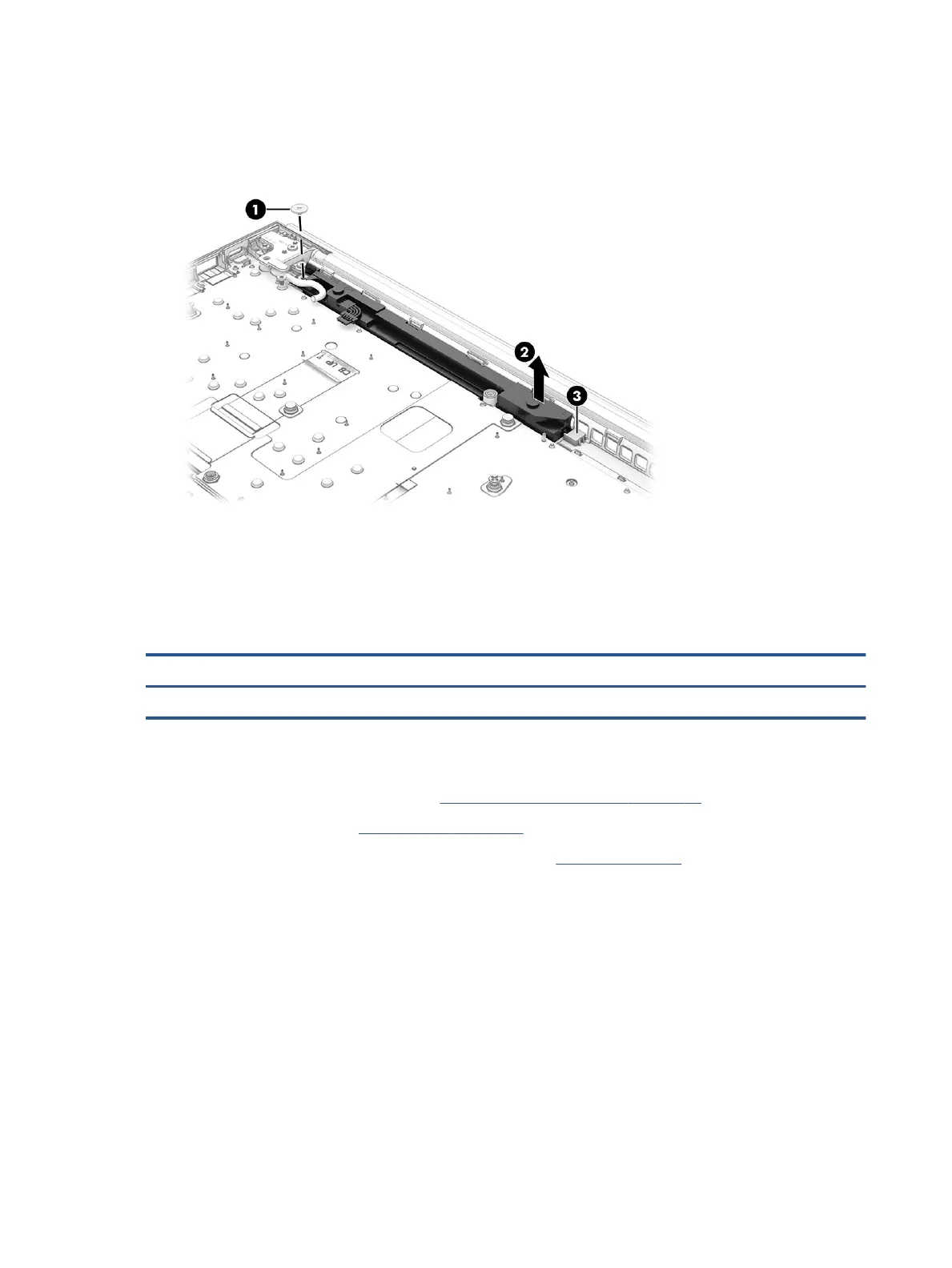

2. Lift the side of the speaker up, and then pull it toward the left to remove it (2). When installing the
speaker, be sure that the rubber cap in installed on the right end of the speaker (3) .
Reverse this procedure to install the speaker.
Power connector cable
To remove the power connector cable, use this procedure and illustration.
Table
5-15 Power connector cable description and part number
Description Spare part number
Power connector cable M21725-001
Before removing the power connector cable, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 30).
2. Remove the bottom cover (Bottom cover on page 30).
3. Disconnect the battery cable from the system board (see Battery on page 31).
Remove the power connector cable:
1. Remove the two Phillips M2.5 × 4.0 screws (1) that secure the right display hinge to the computer, and
then rotate the hinge o the power connector (2).
2. Remove the Phillips M2.0 × 4.0 screw (3) that secures the power connector to the computer.
3. Disconnect the cable from the system board (4).
50 Chapter 5 Removal and replacement procedures for authorized service provider parts
