b. Pull the cable up to disengage it from the adhesive that secures it to the inside of the enclosure (2),
and then remove the cable from the enclosure (3).
Displays with an HD camera

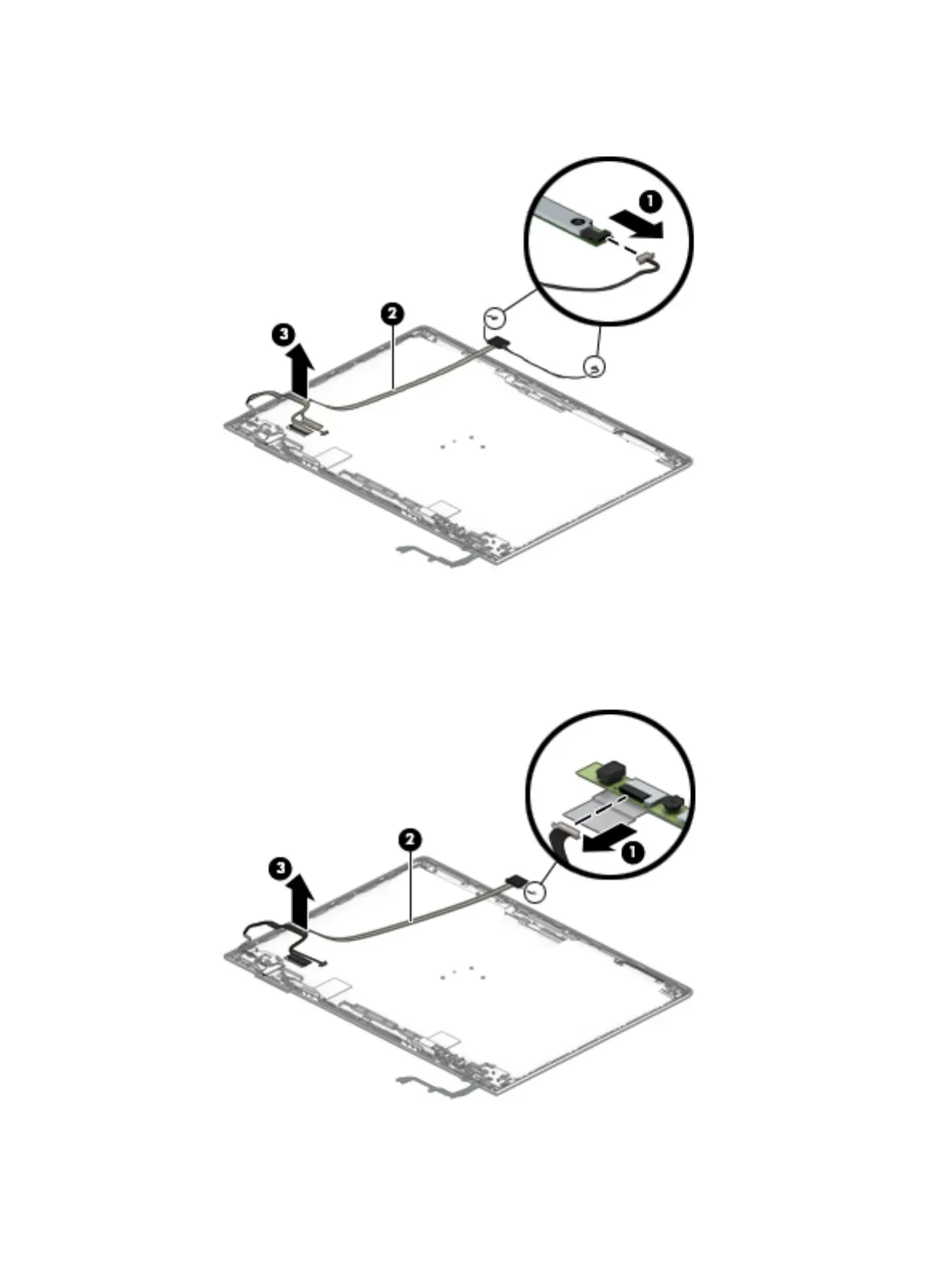

a. Disconnect the cable from the ZIF connector on the camera module (1).
b. Pull the cable up to disengage it from the adhesive that secures it to the inside of the enclosure (2),
and then remove the cable from the enclosure (3).
Reverse this procedure to reassemble the display assembly.
66 Chapter 6 Removal and replacement procedures for authorized service provider parts
