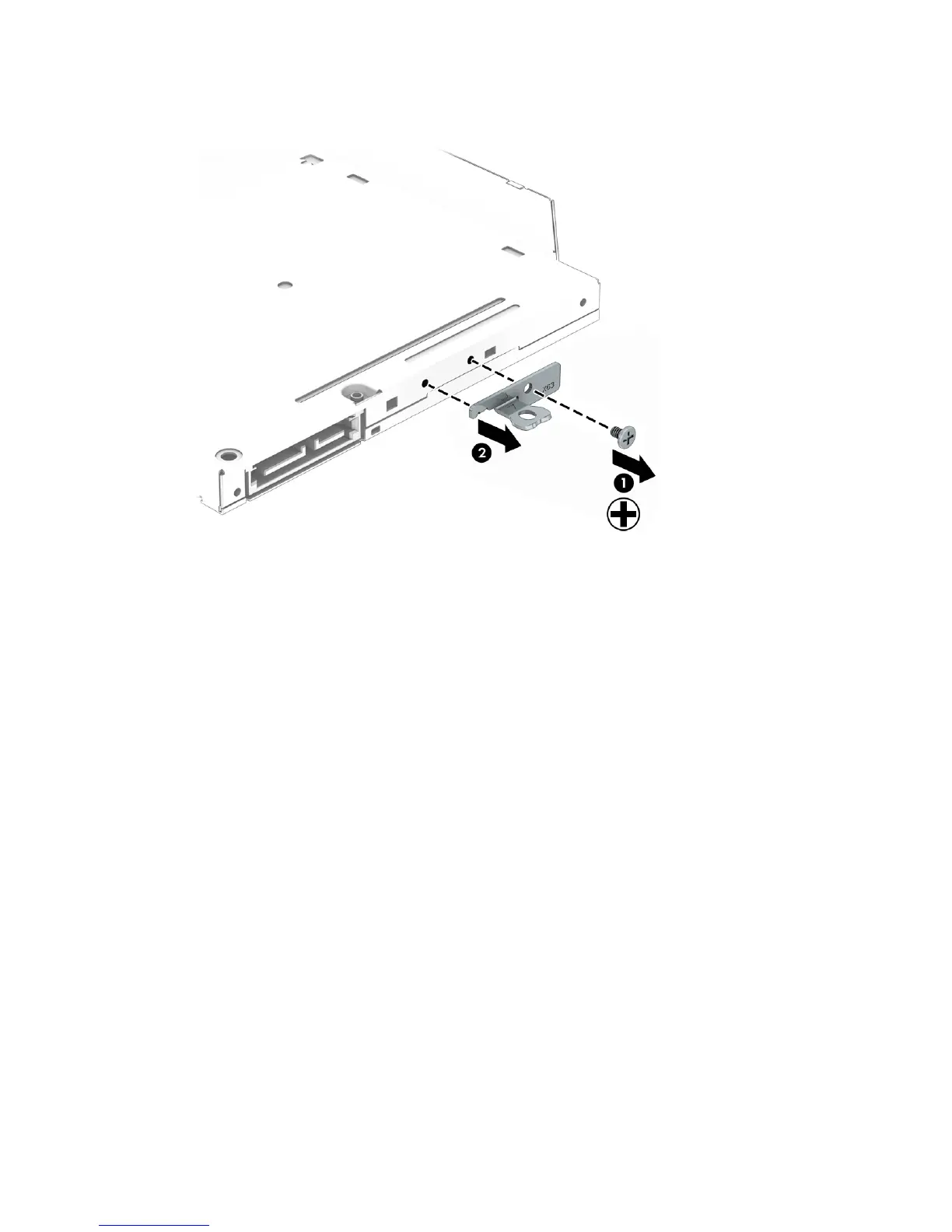

4. If it is necessary to remove the bracket from the optical drive, remove the Phillips PM2.5×4.0 screw (1)
that secures the bracket to the rear of the drive, and then remove the bracket from the drive (2).
Reverse these procedures to install a optical drive.
