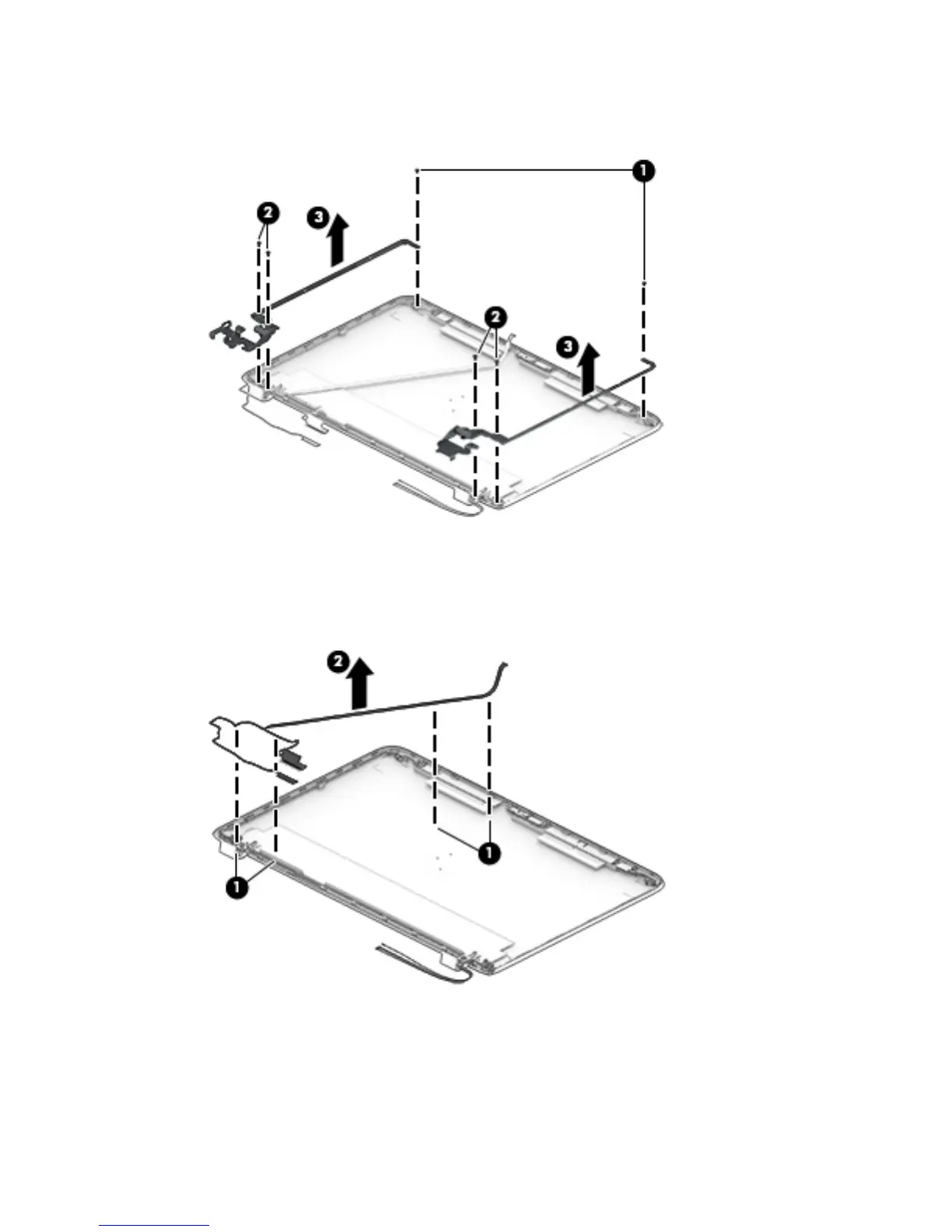

14. Remove the display hinges from the display enclosure (3).
Display hinges are available in the Display Hinge Kit using spare part number 828404-001.
15. If it is necessary to replace the display cable, remove the cable from the clips built into the left side of
the display enclosure (1).
16. Remove the cable from the display enclosure (2).
The display/webcam cable is available in the Cable Kit using spare part number 828418-001.
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures 79
