HP ProBook 470 G2 - Page 55

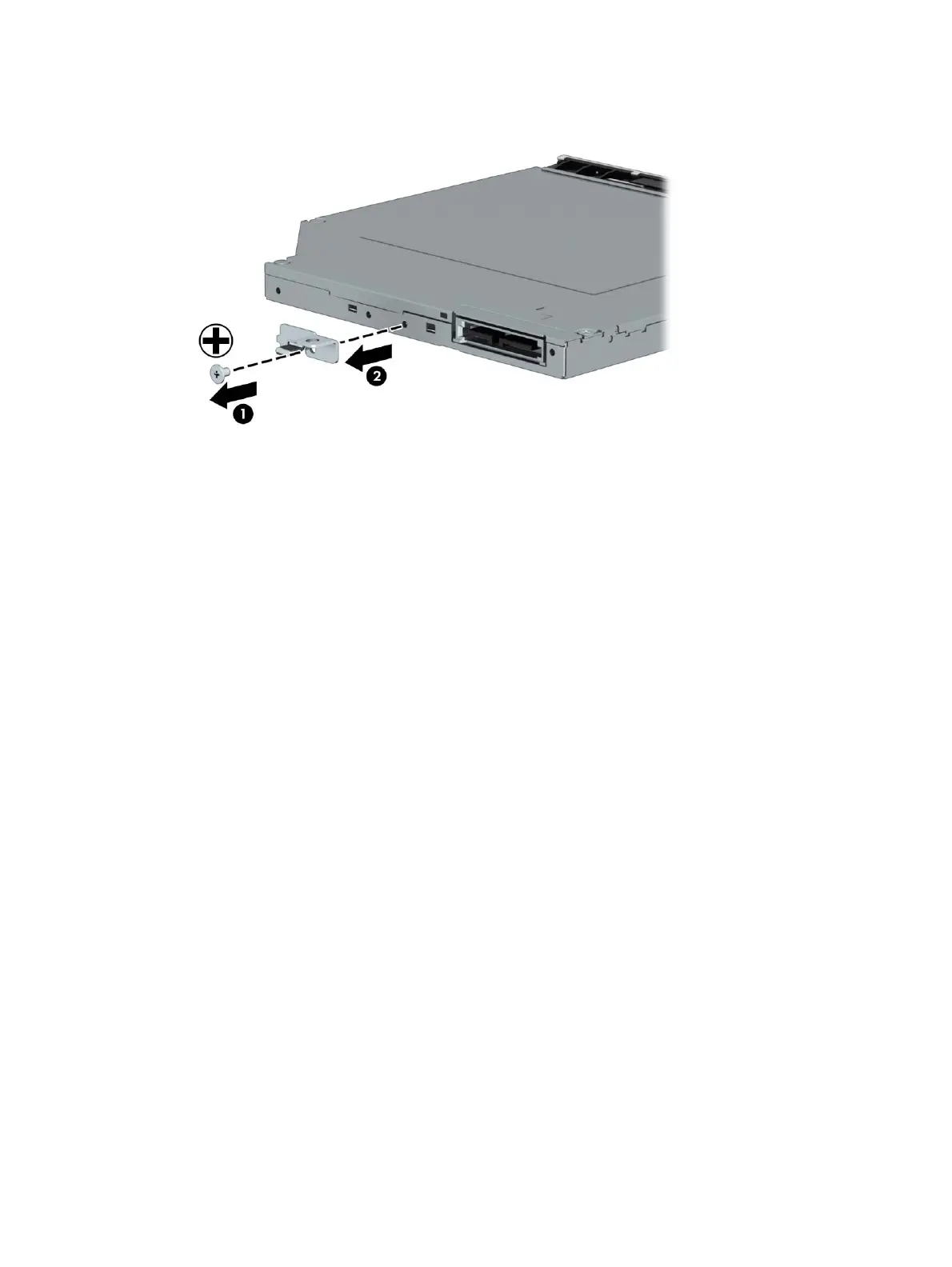

4. To remove the bracket from the optical drive, remove the Phillips PM2.0×3.0 screw (1) that secures the
bracket to the drive, and then remove the bracket from the drive (2).
Reverse this procedure to install an optical drive.
Component replacement procedures 43
