Display assembly
Entire display hinge-ups are not spared.
For a list of individual display spare parts, see
Display components on page 19.
Before removing the display assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 35).
5. Remove the following components:
a. Service doors (see
Service door on page 36).
b. Hard drive (see
Hard drive on page 38)
c. Optical drive (see
Optical drive on page 42)
d. WLAN module (see
WLAN/Bluetooth combo card on page 44)
e. Keyboard (see
Keyboard on page 46)
f. Top cover (see
Top cover on page 49)
Remove the display assembly:
1. Position the computer upside down.

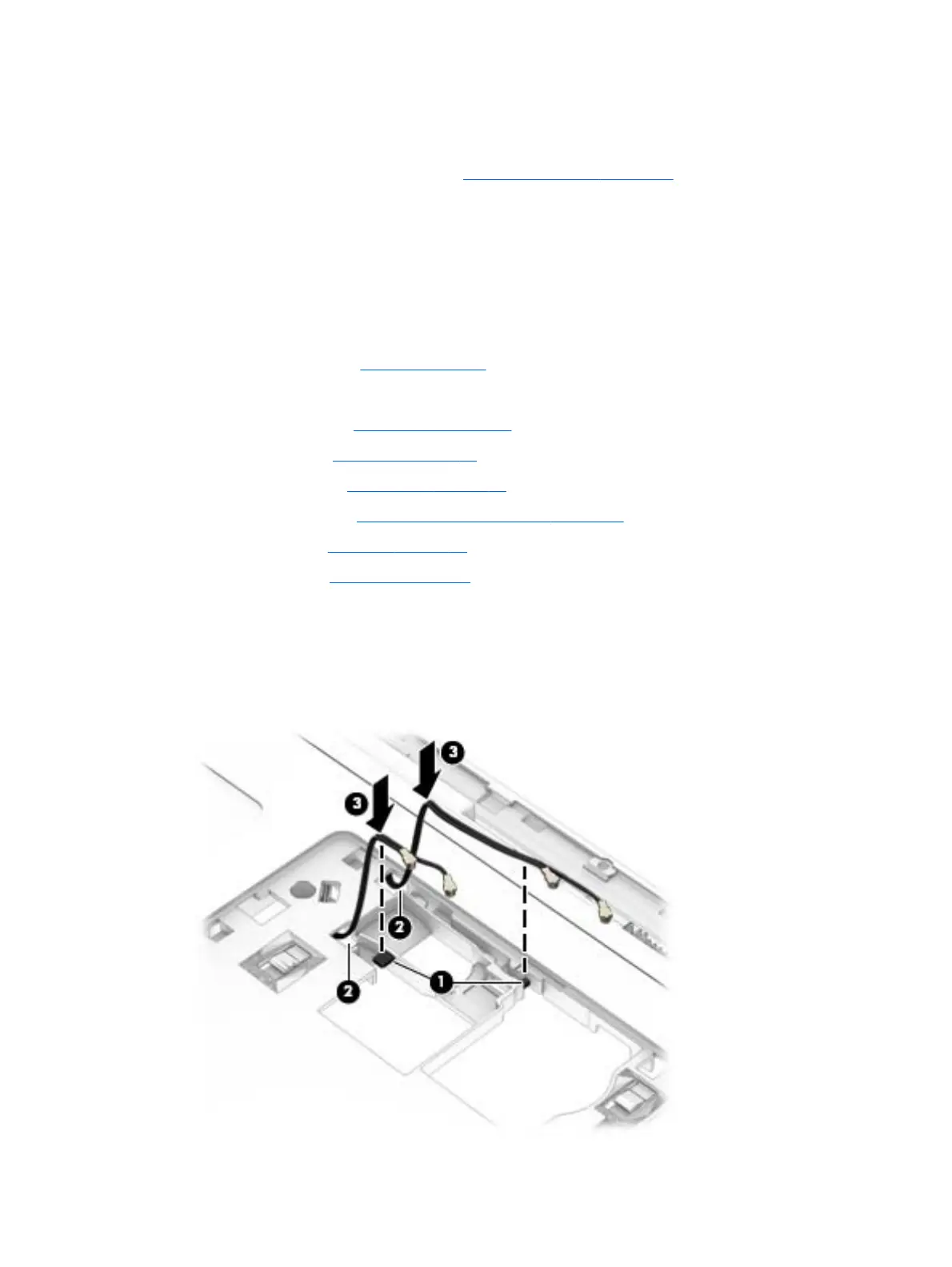

2. Pull the antenna cables through from the bottom of the computer. Position the computer upside down,
and then remove the cables from the clips near the wireless modules (1), pulling the cables (2) through
the holes (3) in the computer.
Component replacement procedures 75
