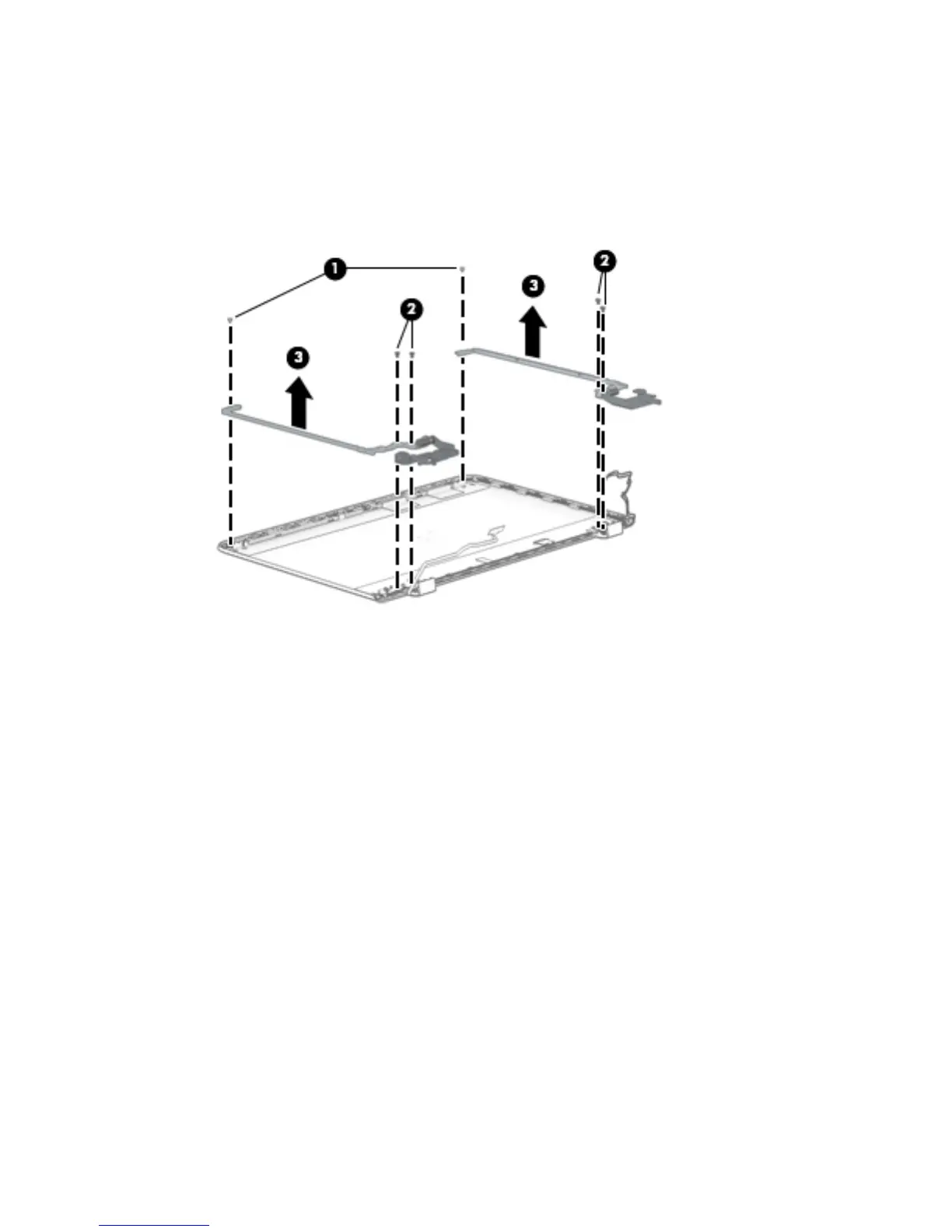

13. If it is necessary to replace the display hinges, remove the 2 Phillips PM2.0×3.0 screws at the top (1) and
the 4 broadhead Phillips PM2.5×3.0 screws at the bottom (2) that secure the display hinges to the
display enclosure.
14. Remove the display hinges from the display enclosure (3).
Display hinges are available in the Display Hinge Kit using spare part number 827043-001.
15. If it is necessary to replace the display/webcam cable, lift the webcam cable to disengage the adhesive
near the webcam module (1), and then remove the cable from the clips built into the left side of the
display enclosure (2).
Component replacement procedures 81
