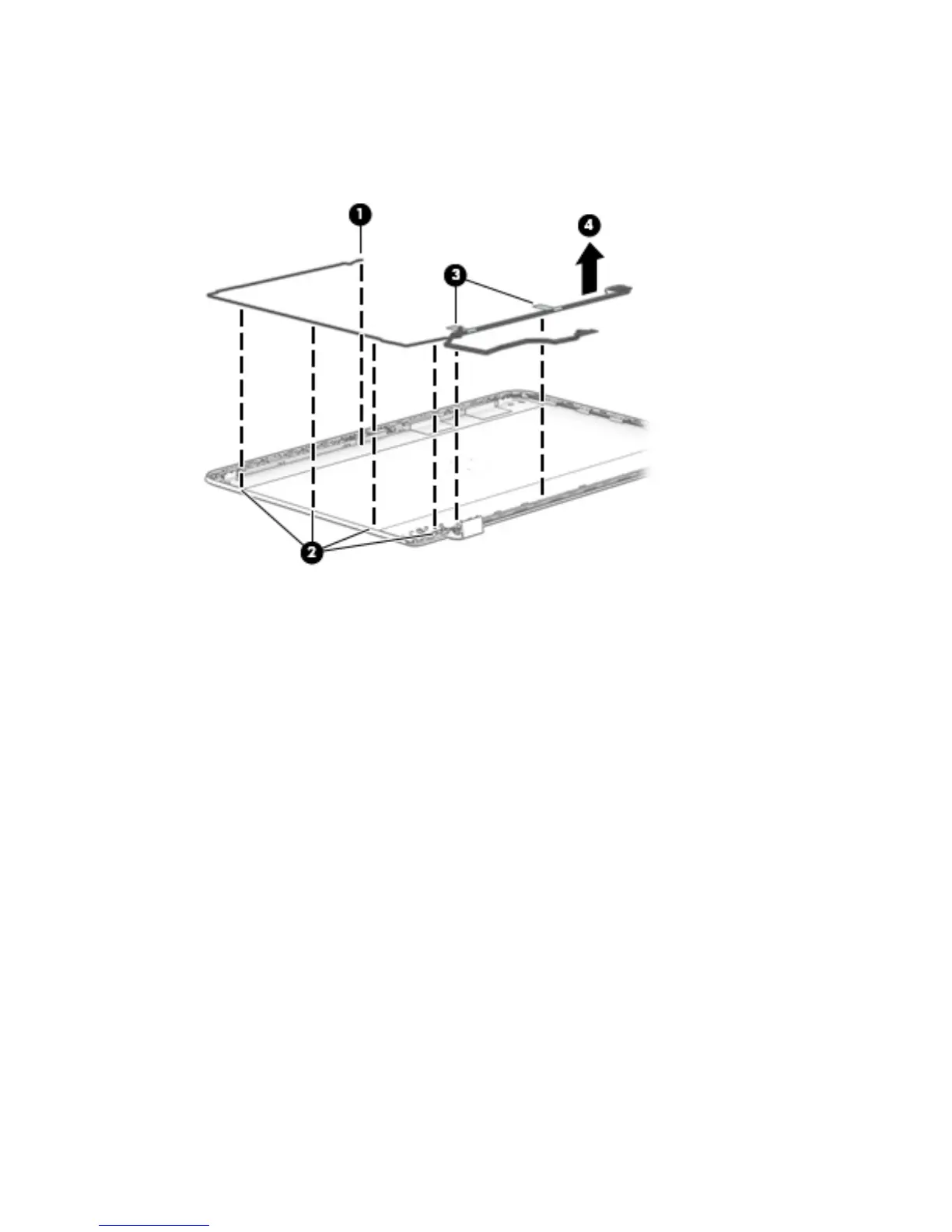

16. Lift the tabs to disengage the adhesive on the cable near the bottom of the display enclosure (3), and
then remove the cable from the display enclosure (4).
The display/webcam cable is available in the Cable Kit using spare part number 827031-001.
Reverse this procedure to reassemble and install the display assembly.
82 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
