Table 2-1 Right-side components and their descriptions (continued)
Component Description
● White: The battery charge is greater than 90 percent.
● Amber: The battery charge is from 0 to 90 percent.
● O: The battery is not charging.
When AC power is disconnected (battery not charging):
● Blinking amber: The battery has reached a low battery level.
When the battery has reached a critical battery level, the
battery light begins blinking rapidly.
● O: The battery is not charging.
(5) Power connector Connects an AC adapter.
Left

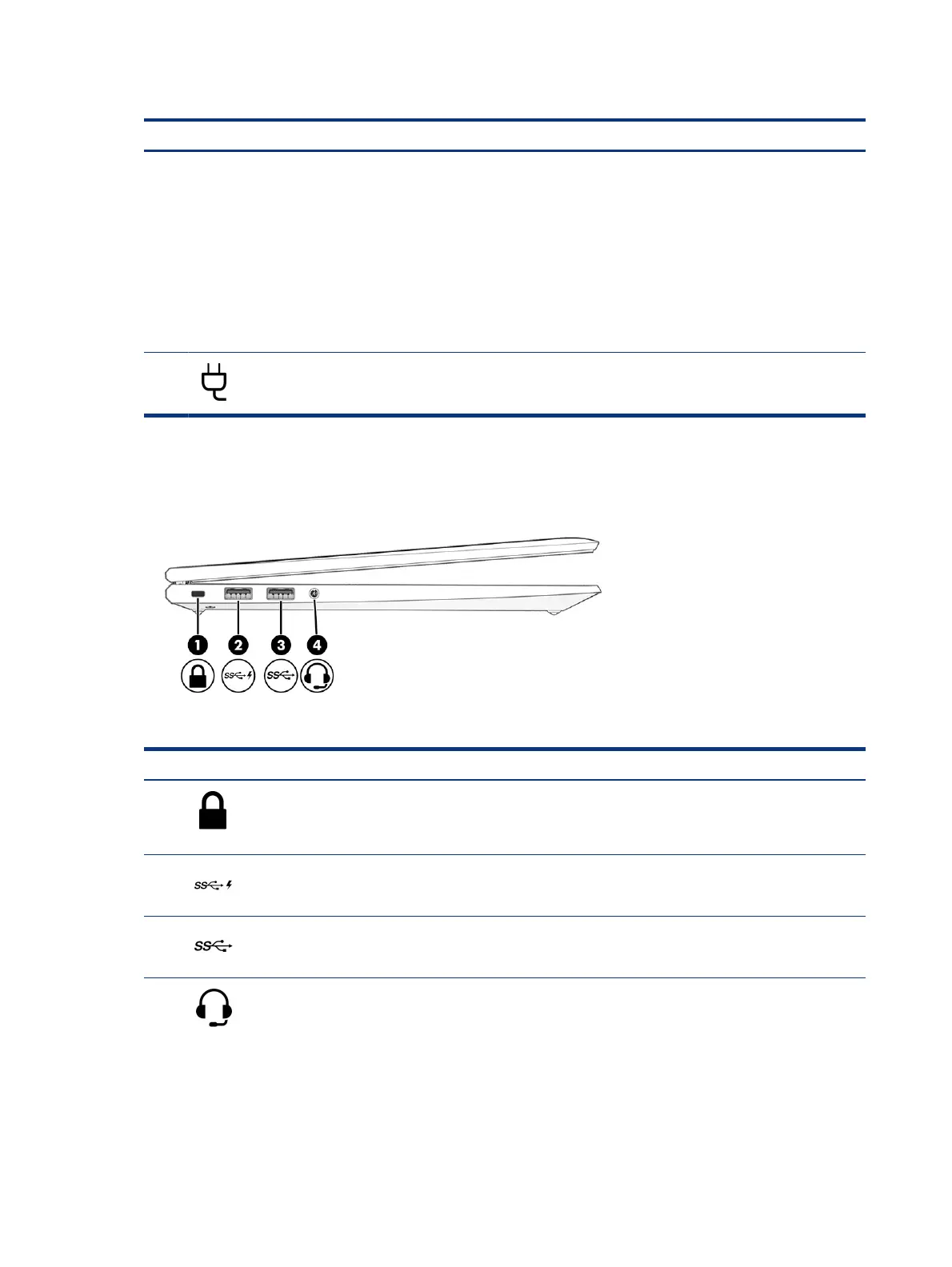

Use the illustration and table to identify the components on the left side of the computer.
Table 2-2 Left-side components and their descriptions
Component Description
(1) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent, but it
might not prevent the computer from being mishandled or stolen.
(2) USB SuperSpeed port with HP Sleep and Charge Connects a USB device, provides high-speed data transfer, and
charges small devices, even when the computer is o.
(3) USB SuperSpeed port Connects a USB device, provides high-speed data transfer, and (for
select products) charges small devices when the computer is on or
in Sleep mode.
(4) Audio-out (headphone)/Audio-in (microphone)
combo jack
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also connects an
optional headset microphone. This jack does not support optional
standalone microphones.
WARNING! To reduce the risk of personal injury, adjust the
volume before putting on headphones, earbuds, or a headset. For
additional safety information, see the Regulatory, Safety, and
Environmental Notices.
To access this guide:
6 Chapter 2 Components
