2. Remove the bottom cover (see Bottom cover on page 35).
3. Remove the battery (see Battery on page 43).

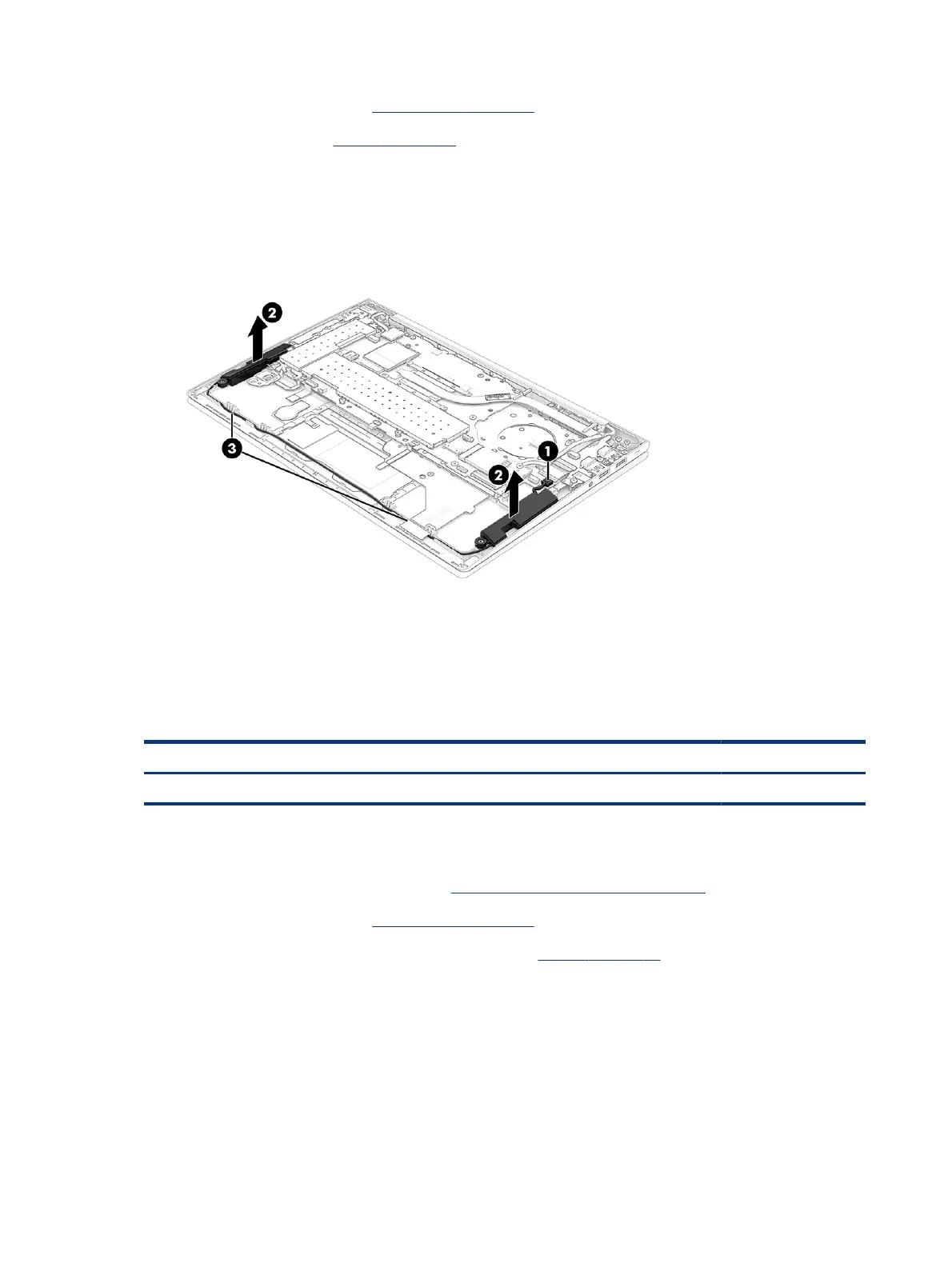

Remove the speakers:
1. Disconnect the speaker cable from the system board (1).
2. Remove the speakers from the computer (2) and remove the cable between the speakers from the clips
along the bottom of the computer (3).
Reverse this procedure to install the speakers.
Power connector cable
To remove the power connector cable, use this procedure and illustration.
Table 6-6
Power connector cable description and part number
Description Spare part number
Power connector cable M15626-001
Before removing the power connector cable, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 43).
2. Remove the bottom cover (see Bottom cover on page 35).
3. Disconnect the battery cable from the system board (see Battery on page 43).
Remove the power connector cable:
1. Disconnect the cable from the system board (1), and then remove the cable from the clip (2).
2. Remove the Phillips M2.0 × 4.0 screw (3) that secures the power connector cable to the computer.
50
Chapter 6 Removal and replacement procedures for authorized service provider parts
