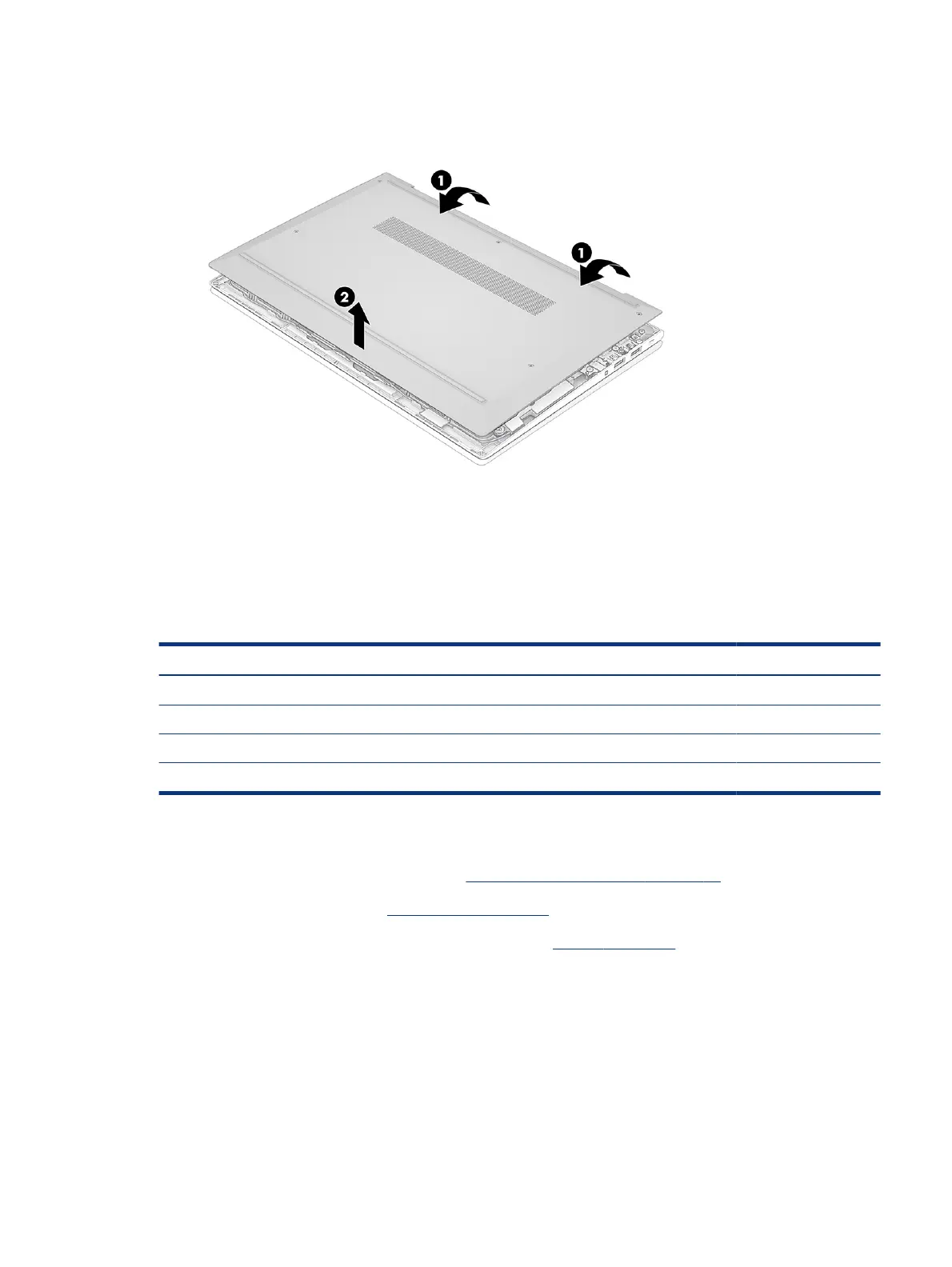

3. Remove the bottom cover from the computer (2).
To replace the bottom cover, reverse the removal procedures.
Memory modules
To remove the memory modules, use this procedure and illustration.
Table 5-2
Memory module descriptions and part numbers
Description Spare part number
16 GB, DDR4-3200 L67710-001
8 GB, DDR4-3200 L46598-001
4 GB, DDR4-3200 L83673-001
Memory module cover (included in Miscellaneous Parts Kit) M30663-001
Before removing the memory, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 35).
2. Remove the bottom cover (see Bottom cover on page 35).
3. Disconnect the battery cable from the system board (see Battery on page 43).
If you are replacing a memory module, remove the existing memory module:
1. Use the tab (1) to lift the cover o the memory modules (2). The cover is held in place by clips on the system
board.
Memory modules
37
