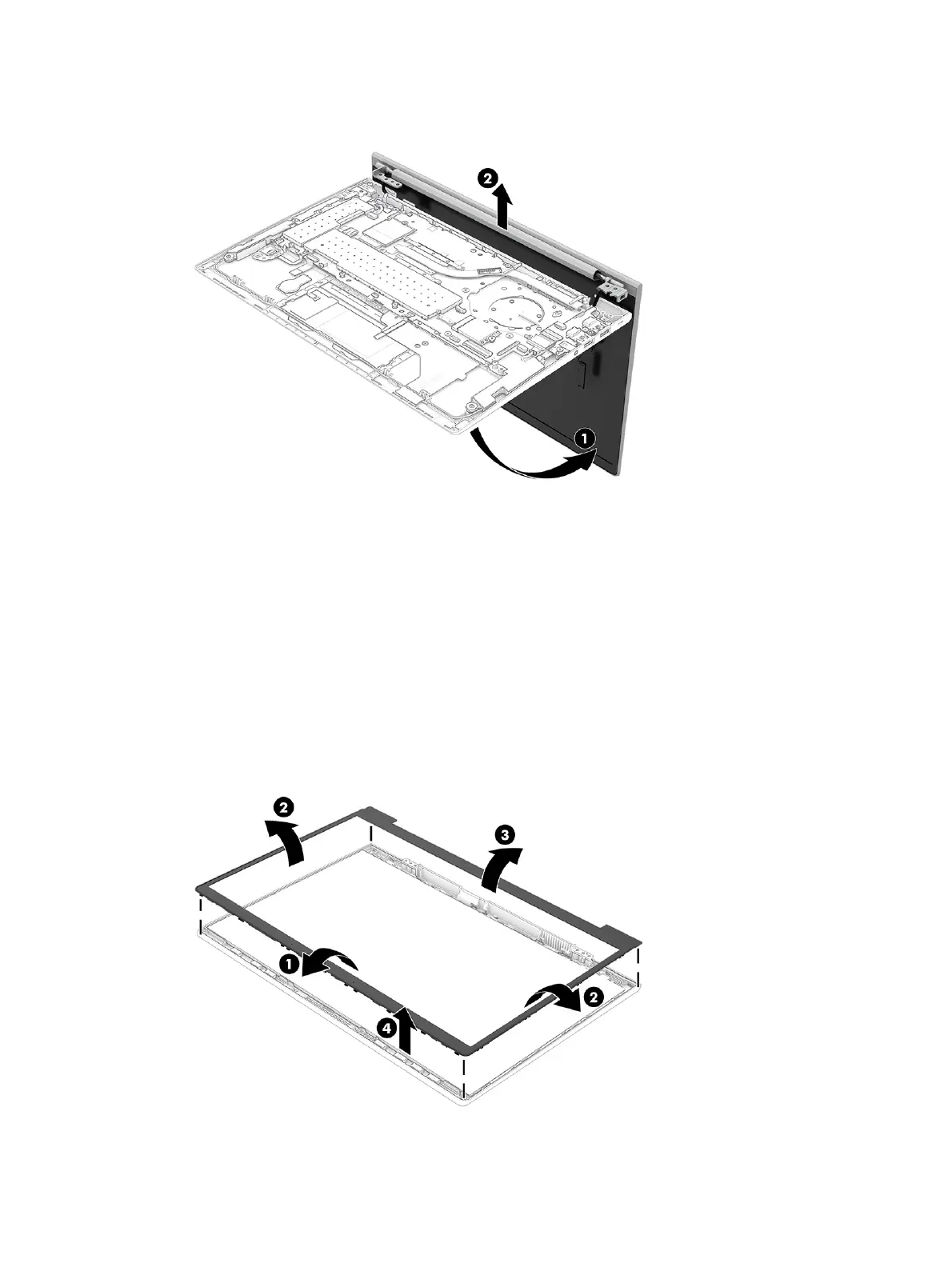

5. Separate the display assembly from the computer (2).
6. If you need to replace display assembly subcomponents:
a. Flex the top (1), the left and right sides (2), and then the bottom of the bezel (3) to release it.
b. Remove the bezel from the display (4).
The display bezel is available using the following spare part numbers:
● M30658-001: For use in models with an IR camera and ambient light sensor
● M30657-001: For use in models with an IR camera
● M30656-001: For use in models with an RGB camera
● M30659-001: For use in models with a microphone module (no camera)
62 Chapter 6 Removal and replacement procedures for authorized service provider parts
