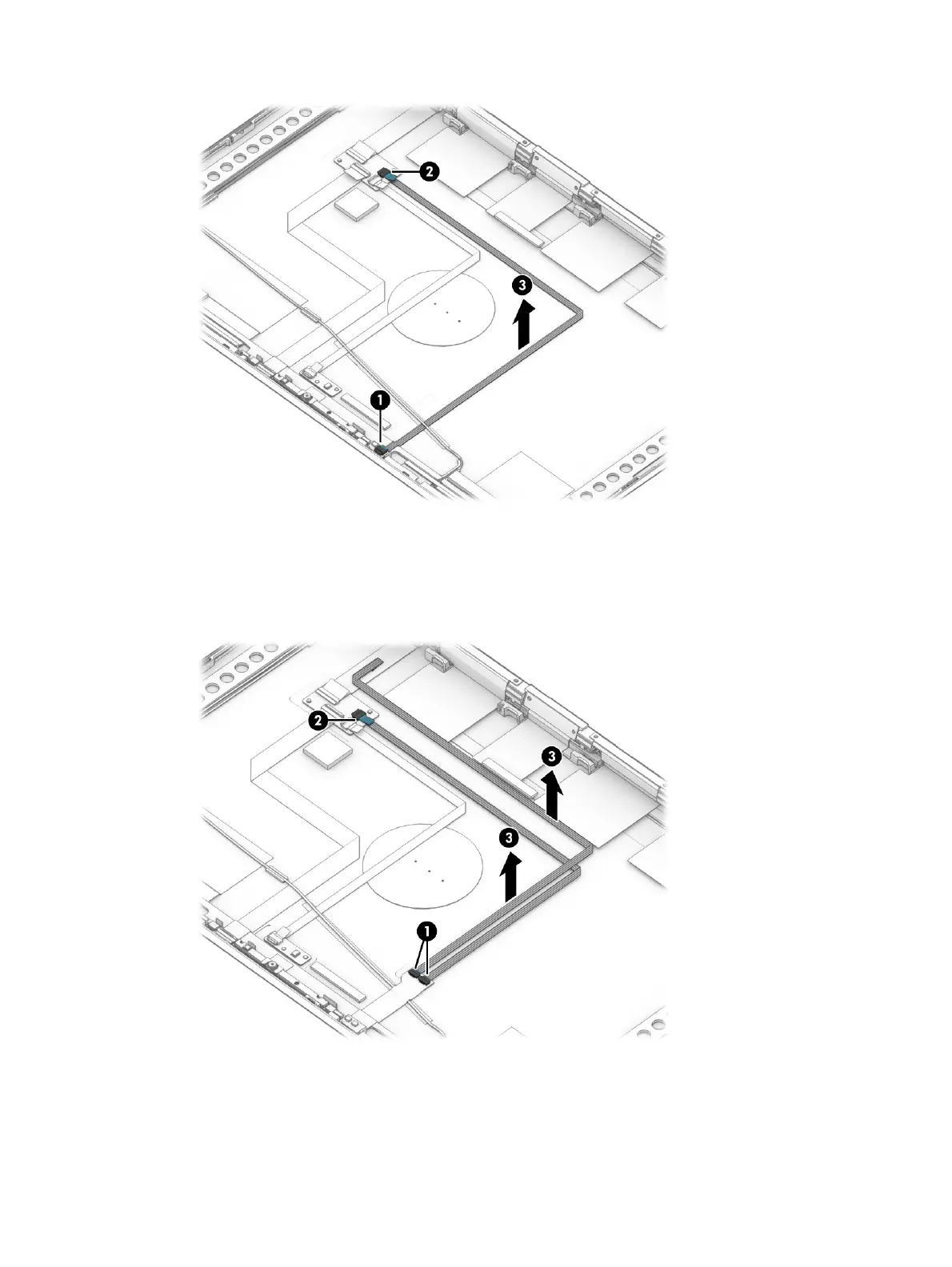

21. If you need to remove the second ambient light sensor cables, disconnect the cable from the ZIF connectors
on the second ambient light sensor (1) and hub board (2), and then peel the cables o the inside of the
display back cover to remove them (3).
The second ambient light sensor cable is available in the Cable Kit, spare part number M30646-001.
The display back cover is available using the following spare part numbers:
M30653-001: Models with WWAN, thin
M30654-001: Models with WLAN, thick
Display assembly
73
