Table 5-3 Touchpad description and part number
Description Spare part number
NOTE: The touchpad cable is available in the Cable Kit, spare part number M03431-001.
Before removing the touchpad, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 29).
2. Remove the bottom cover (Bottom cover on page 29).
3. Remove the battery (see Battery on page 30).
Remove the touchpad:

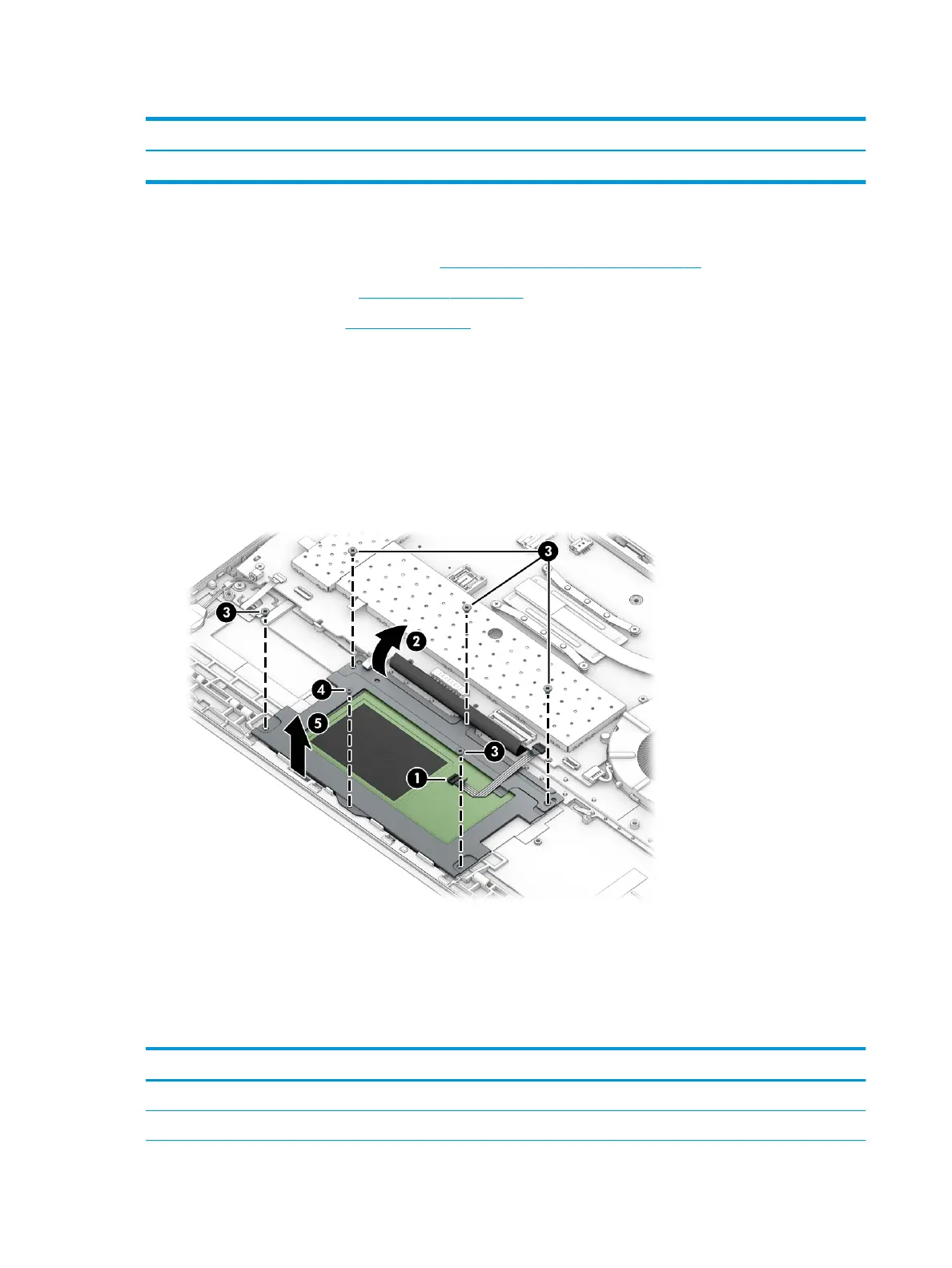

1. Disconnect the cable from the ZIF connector on the touchpad (1).
2. Lift the protective shielding from the top of the touchpad (2).
3. Remove the four Phillips M2.0 × 3.0 screws (3) that secure the touchpad to the computer.
4. Remove the Phillips M1.6 × 2.0 screw (4) that secures the touchpad to the computer.
5. Remove the touchpad from the computer (5).
Reverse this procedure to install the touchpad.
Solid-state drive
To remove the M.2 solid-state drive, use this procedure and illustration.
Table
5-4 Solid-state drive descriptions and part numbers
Description Spare part number
512 GB, PCIe, TLC L85360-002
512 GB, PCIe, value L85364-002
32 Chapter 5 Removal and replacement procedures for authorized service provider parts
