Installing the Switch 2124
Installation Procedures
Installing the Switch 2124
3. Verify the Switch Operates Correctly
After you have optionally installed a transceiver, but before mounting the
switch in its network location, you should first check that it is working
properly by plugging it into a power source and verifying that it passes its self
test.
1. Connect the power cord supplied with the switch to the power connector
on the back of the switch, and then into a nearby properly grounded
electrical outlet.
Note The Switch 2124 does not have a power switch. It is powered on when the
power cord is connected to the switch and to a power source. For safety, the
power outlet should be located near the switch installation.
The switch automatically adjusts to any voltage between 100-240 volts and
either 50 or 60 Hz. There are no voltage range settings required.
If your switch requires a different power cord than the one supplied with the
switch, please see the Installation Precautions on page 2-3.
2. Check the LEDs on the switch. The LED behavior is described on the next
page.

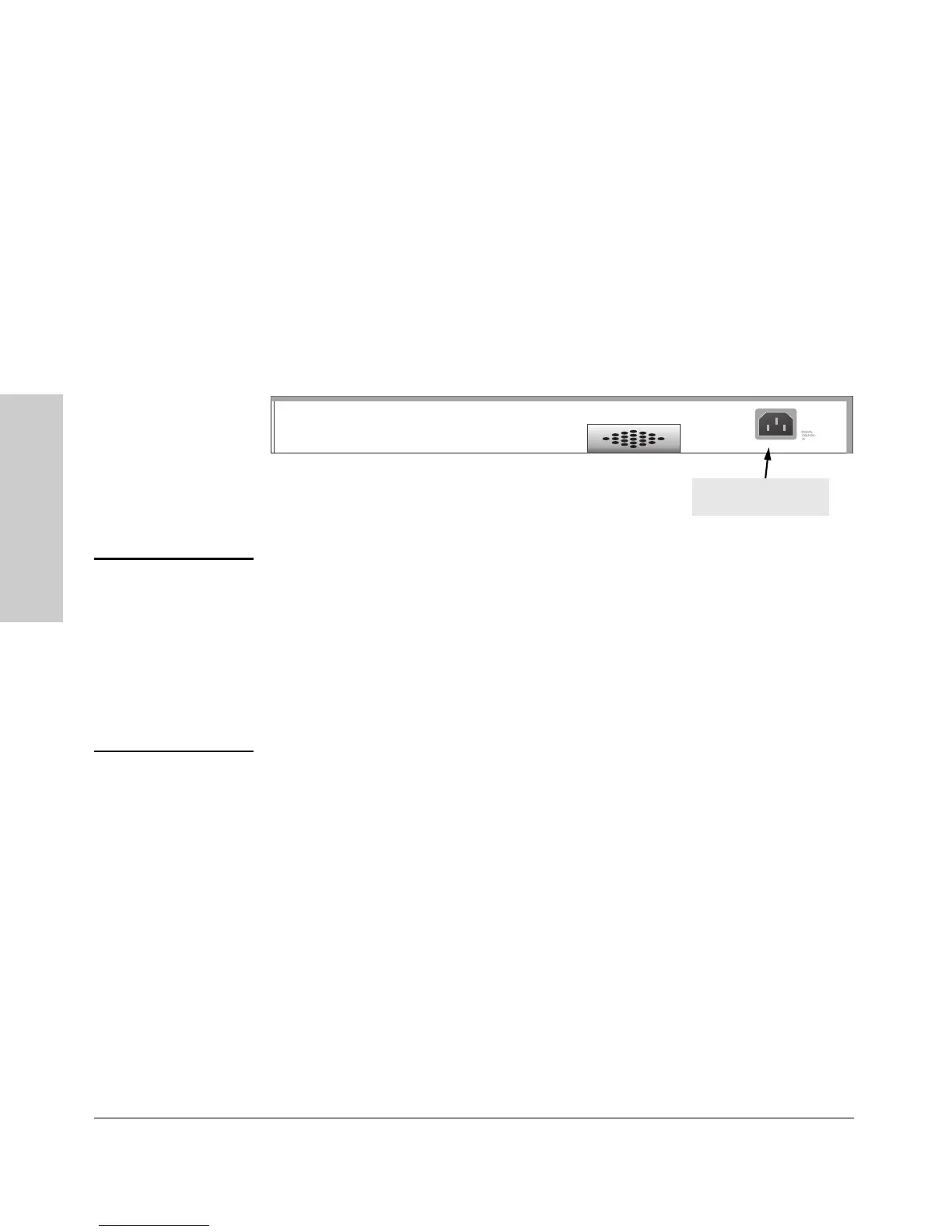

Connect power cord to
the power connector
To Next Page
