Installing the Switch 2124
Installation Procedures
Installing the Switch 2124

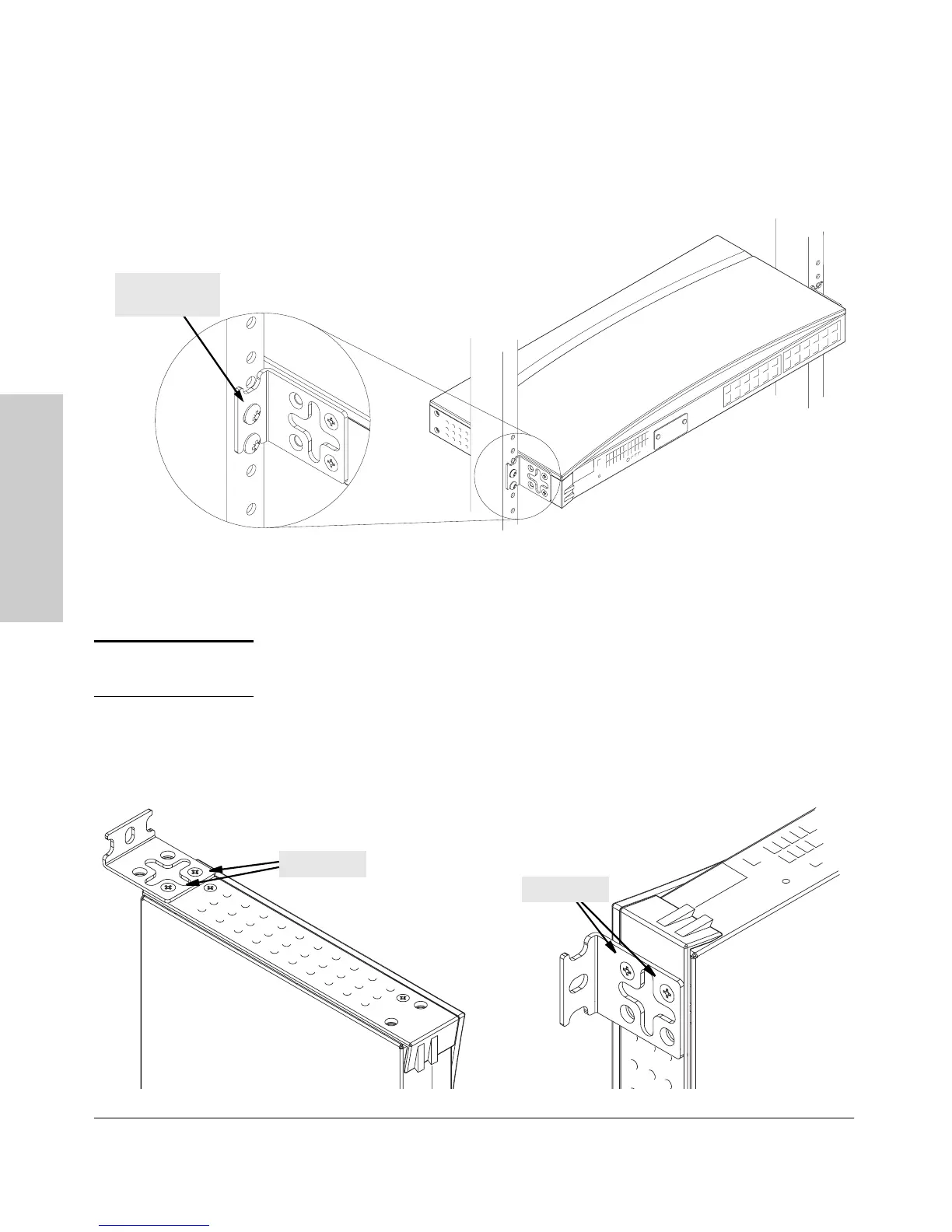

4. Install the other number 12-24 screw into the upper hole in each bracket.
Tighten these screws.
Wall Mounting
You can mount the switch on a wall as shown in the illustrations below.
Caution The switch should be mounted only to a wall or wood surface that is at least
1/2-inch plywood or its equivalent.
1. Use a #1 Phillips (cross-head) screwdriver and attach the mounting
brackets to the switch with the included 8-mm M4 screws.
install additional
screw
M4 screws
M4 screws
For “Bookshelf” Wall Mounting For “Flat” Wall Mounting
To Next Page
