HP ProCurve 5406zl Planning And Implementation Guide

10-27
Planning and Implementation for the 5400zl/8200zl Switches
Configuration Examples
Planning and
Implementation for the
5400zl/8200zl Switches

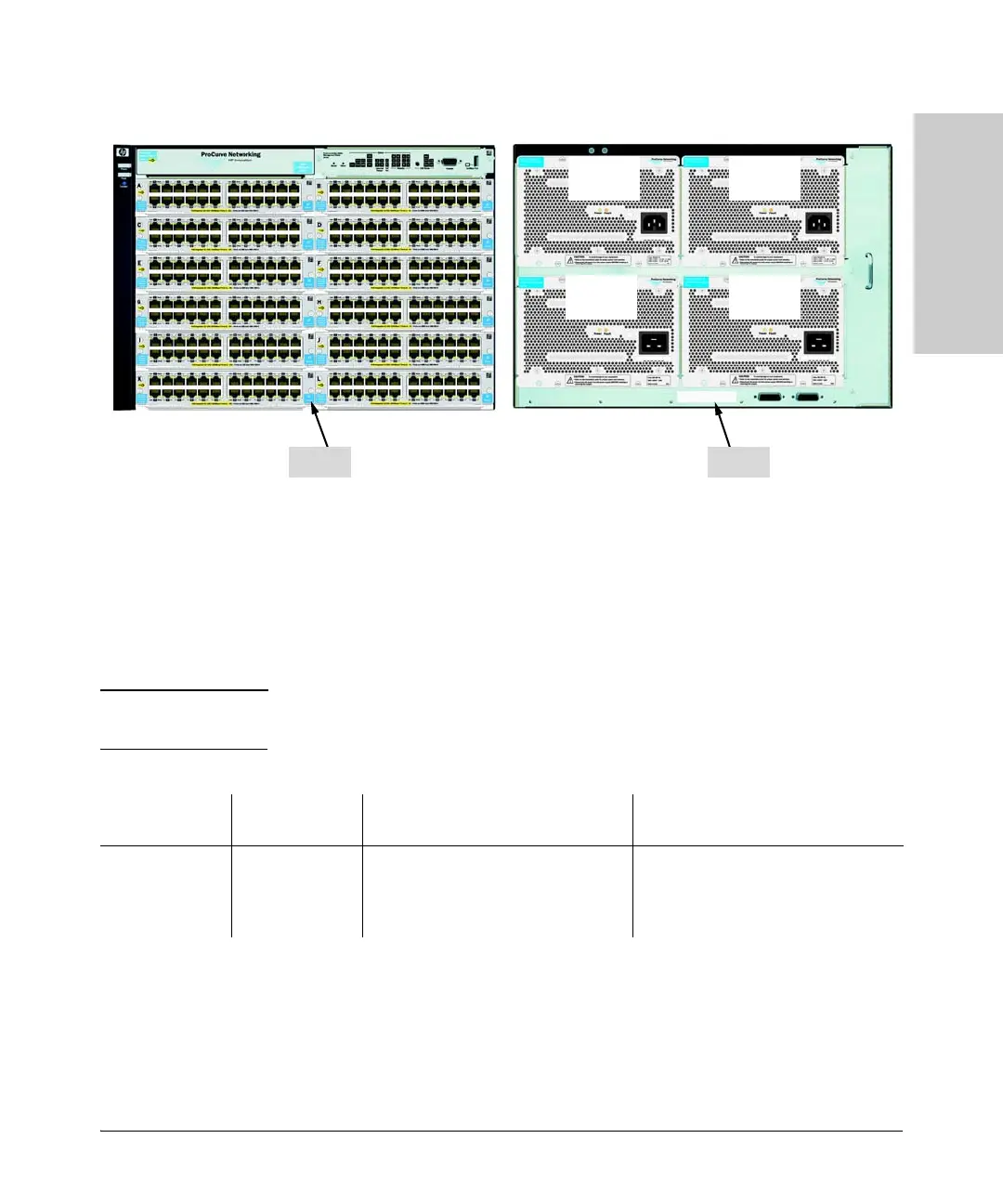

Figure 10-19.Example of a 5412zl with four power supplies (two J8712A and two J8713A)
In this example (Figure 10-19) there are two J8712A and two J8713A power
supplies supplying 2892 watts for PoE usage. With this configuration, 187 ports
(or more than 7 modules) can be provisioned at 15.4 watts, or all 288 ports can
be powered at 7.0 watts each.
Note HP ProCurve highly recommends that the two types of power supplies are not
mixed in the same 5412zl/8212zl chassis.
The reason the redundant # of ports in this table is so low is because redundant
PoE power should always be based on the smallest power supply. In this case
the smallest power supply is the 8712A providing 546 watts.
BackFront
900 watts
for PoE
900 watts
for PoE
273 watts
for PoE
273 watts
for PoE
Source of Power Watts Available # of Ports Powered and Average watts/
Port
Redundant # of Ports Powered and
Average watts/Port
Four Internal PoE
Power Supplies:
two J8712As and
two J8713As
2892 (without
redundancy)
187 @ average 15.4 W each
288 @ average 7.5 W each
288 @ average 4.0 W each
35 @ average 15.4 W
72 @ average 7.5 W each
136 @ average 4.0 W each

HP ProCurve 5406zl Specifications

General

Product Name	HP ProCurve 5406zl
Category	Switch
Layer	Layer 3
Operating Temperature	32°F to 131°F (0°C to 55°C)
Operating Humidity	15% to 95% non-condensing
Management	SNMP, CLI
Power Supply	Redundant power supplies (optional)
Memory	128 MB flash, 512 MB SDRAM
