Introducing the Switch
Table 1. This product supports optional network connectivity with the following speeds and
technologies:

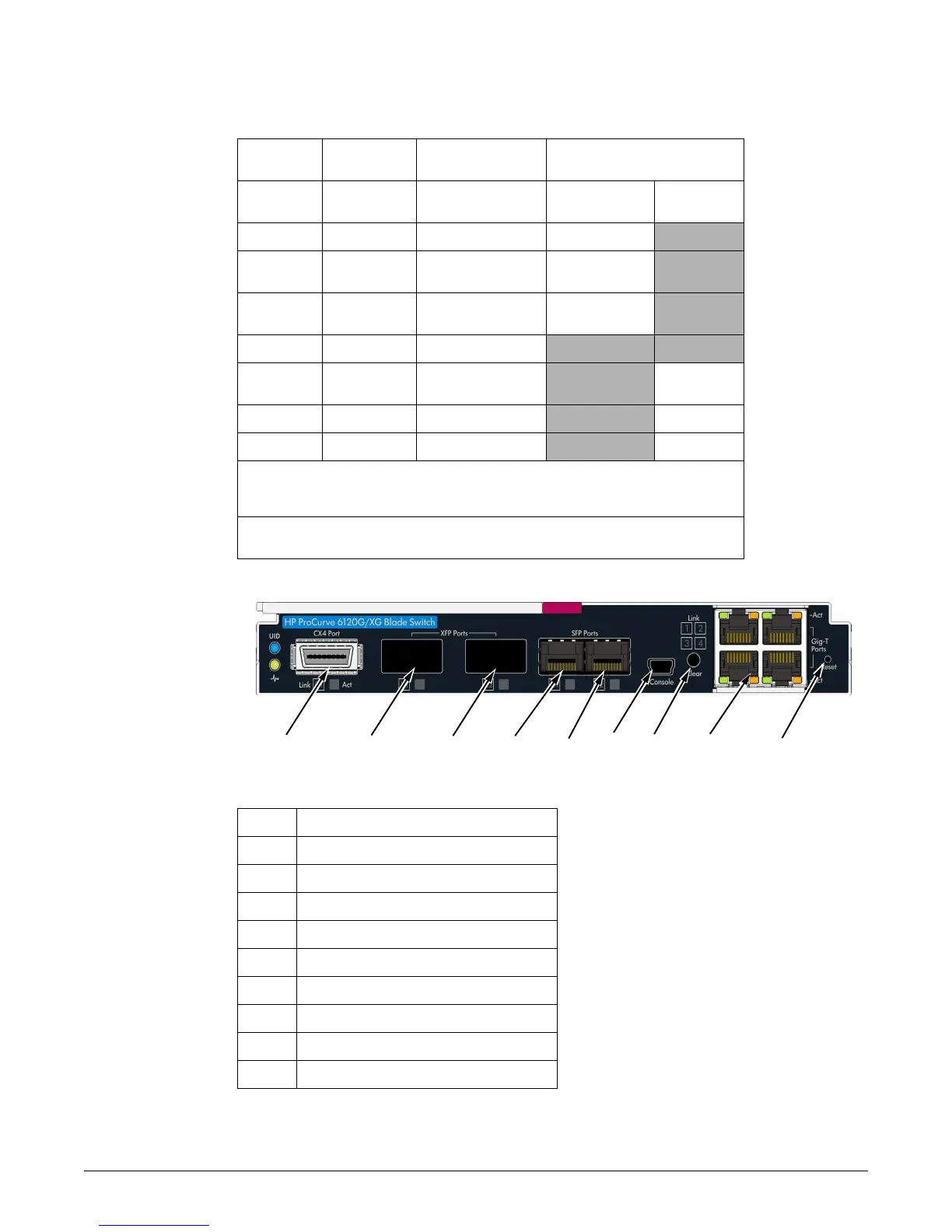

Figure 2. Blade Switch components
1
Supports 10GBASE-SR XFP and 10BASE-LR XFP pluggable optical transceiver modules.
2
Supports 1000BASE-T SFP and 1000BASE-SX SFP, and 1000BASE-LX SFP pluggable optical transceiver
modules.
Speed Technology Cabling
1
Transceiver form-factor
and connector
SFP (mini-GBIC)
Connector
XFP
Connector
1-Gbps 1000-SX Fiber (multimode) LC
1000-LX Fiber (multimode or
single mode)
LC
1000-T Copper (twisted-
pair)
RJ-45
10-Gbps 10-Gig CX4 Copper (twinaxial)
10-Gig
Direct Attach
Copper (twinaxial) N/A
10-Gig SR Fiber (multimode) LC
10-Gig LR Fiber (single mode) LC
1
For supported transceivers see www.hp.com/go/procurve/faqs. Both ProCurve 10-GbE
transceivers and ProCurve Mini-GBICs and SFPs have links to a list of supported
products (first question in the “General Product Information” category).
For technical details of cabling and technologies see the, “Cabling and Technology
Information”section on page 38.
Item Description
1 Port C1 (10GBASE-CX4)
2 Port X1 XFP (10-GbE) slot
1
3 Port X2 XFP (10-GbE) slot
1
4 Port S1 SFP (1-GbE) slot
2
5 Port S2 SFP (1-GbE) slot
2
6 Console port (USB 2.0 mini AB connector)
7 Clear button
8 Port 1-4 (10/100/1000BASE-T)
9 Reset button (recessed)
