10
Switch Installation

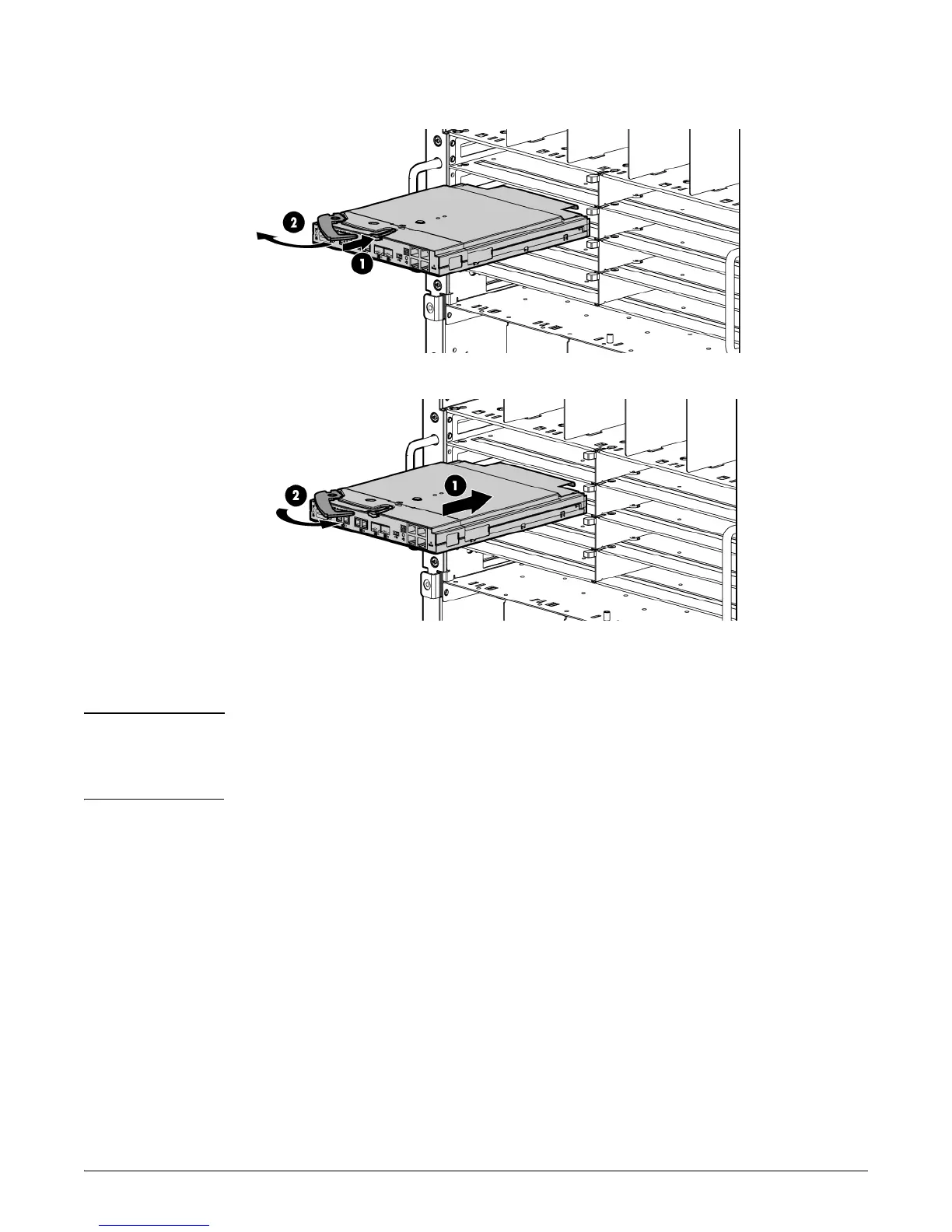

2. Prepare the Blade Switch for installation.
3. Install the Blade Switch into the interconnect bay.
4. If the enclosure configuration includes more than one Blade Switch, install the other Blade
Switches now.
5. Connect the data center network cables to any Blade Switch port not being used.
Note The 1000BASE-SFP, 10GBASE-XFP, and 10-GbE SFP+ ports can be used to connect to the data
center if they are populated with a supported pluggable SFP, XFP, or SFP+ optical transceiver.
See the Installing or Removing SFP (mini-GBIC) or XFP transceivers section (page 13) for
more information.
At this point, the switch is fully installed. See “Getting Started With Switch Configuration”
on page 18 for switch configuration information and for some basic configuration steps. For
more detailed information, refer to the Management and Configuration Guide for the
Series 6120 Switches, which is on the HP Web site at www.hp.com/go/bladesystem
/documentation.
